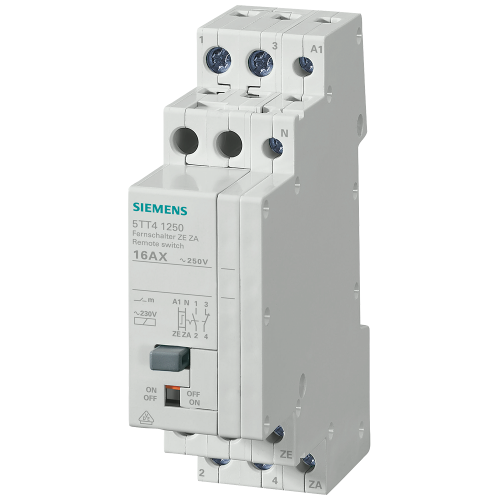

5TT41250

Remote control switch with 1 NO contact, and 1 NC with central ON/OFF function Contact for 230 V AC,

Manufacturer's No: 5TT4125-0     Manufacturer: Siemens
Remote control switch with 1 NO contact, and 1 NC with central ON/OFF function Contact for 230 V AC,

Availability Back Order

£76.36
  • Remote control switch
  • 1 Normally Open (NO) contact and 1 Normally Closed (NC) contact
  • Central ON/OFF function
  • Contact rating: 230V AC, 16A
  • Control voltage: 230V AC

Accessories



Product

Manufacturer Material ID -
5TT4125-0
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
RO
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Built-in depth -
70 Millimetre
Manual operation possible -
Control voltage 1 -
184 Volt
Control voltage 2 -
184 Volt
Frequency control voltage 1 -
50 Hertz
Frequency control voltage 2 -
50 Hertz
Function -
Mechanical for centralized control
Manual operation -
Max. incandescent lamp load -
2000 Watt
Max. load fluorescent lamp -
400 Voltampere
Max. load fluorescent lamp (Duo circuit) -
700 Voltampere
Max. load fluorescent lamp (parallel compensated) -
300 Voltampere
Max. switching current (cos phi = 0.6) -
16 Ampere
Mounting method -
DIN rail
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Rated switch current -
16 Ampere
Recess depth -
70 Millimetre
Supply voltage -
250 Volt
Type of control voltage 1 -
AC
Type of control voltage 2 -
AC
Voltage type of supply voltage -
AC
Width in number of modular spacings -
2
