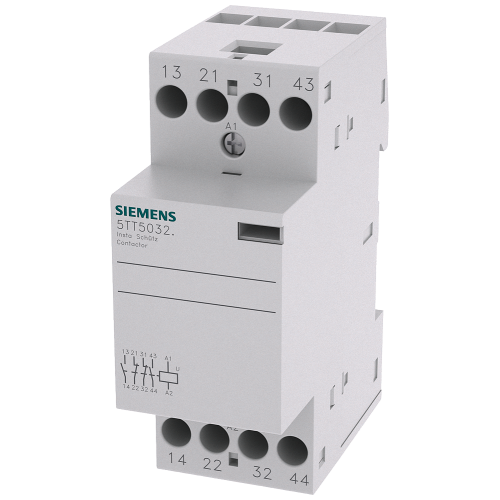

5TT50320

INSTA contactor with 2 NO contacts and 2 NC Contact for 230 V AC, 400V 25A Control 230 V AC 220 V DC

Manufacturer's No: 5TT5032-0     Manufacturer: Siemens
INSTA contactor with 2 NO contacts and 2 NC Contact for 230 V AC, 400V 25A Control 230 V AC 220 V DC

Availability On Request

£63.47
  • Contactor with 2 NO contacts and 2 NC contacts
  • Rated for 230V AC and 400V, 25A
  • Control voltage: 230V AC, 220V DC

Accessories

Spacer 0.5 MW

Product Code - 5TG8240
Price £4.88
On Request

Sealing cap for 5TT583.

Product Code - 5TT59106
Price £1.80
On Request


Product

Manufacturer Material ID -
5TT5032-0
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
SI
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Utility category -
-
Max. incandescent lamp load -
- Watt
Max. load fluorescent lamp -
- Voltampere
Max. load fluorescent lamp (Duo circuit) -
- Voltampere
Max. load fluorescent lamp (parallel compensated) -
- Voltampere
Built-in depth -
64 Millimetre
Number of modular spacings -
2
Degree of protection (IP) -
IP20
Additional equipment possible -
Degree of protection (IP rating) -
IP20
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
2
Rated excitation voltage -
230 Volt
Rated operating voltage -
400 Volt
Rated operation current -
25 Ampere
Recess depth -
64 Millimetre
Voltage type (excitation voltage) -
AC/DC
Voltage type (operating voltage) -
AC
Width in number of modular spacings -
2

Availability On Request

£63.47
