6AG10551MA007BA2

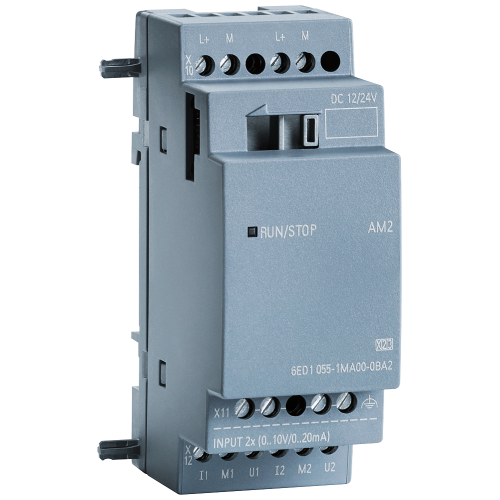

SIPLUS LOGO! AM2 For LOGO! 8, -40 ... +70 °C with conformal coating based on 6ED1055-1MA00-0BA2

Manufacturer's No: 6AG1055-1MA00-7BA2     Manufacturer: Siemens
SIPLUS LOGO! AM2 For LOGO! 8, -40 ... +70 °C with conformal coating based on 6ED1055-1MA00-0BA2

View 3D

Availability Back Order

£387.00
  • SIPLUS LOGO! AM2 expansion module
  • Model: 6ED1055-1MA00-0BA2
  • Conformal coating for harsh environments
  • Operating temperature: -40°C to +70°C
  • Start-up temperature: -25°C
  • Power supply: 12/24 V DC
  • 2 analog inputs
  • Input range: 0-10 V or 0/4-20 mA
  • Compatible with LOGO! 8
Product video
Product video


Product

Manufacturer Material ID -
6AG1055-1MA00-7BA2
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Resolution of the analogue outputs -
- Bit
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Type of electric connection -
Screw connection
Analogue inputs configurable -
Depth -
58 Millimetre
Height -
90 Millimetre
Input signal, configurable -
Input, current -
Input, voltage -
Number of analogue inputs -
2
Number of analogue outputs -
0
Resolution of the analogue inputs -
10 Bit
Width -
35.5 Millimetre

Availability Back Order

£387.00
