6AG10551MM007BA2

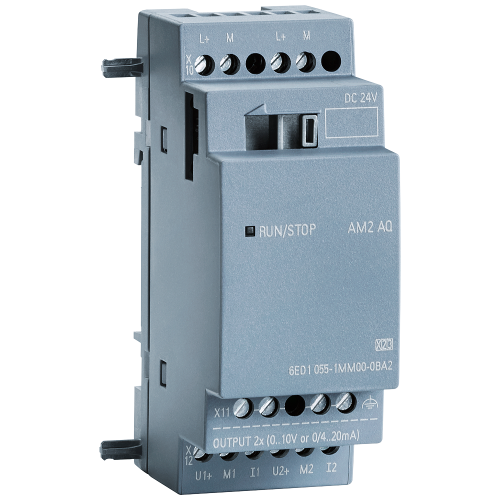

SIPLUS LOGO! AM2 AQ 0 ... 10 V, 0/4 ... 20 mA For LOGO! 8, -40 ... +70 °C with conformal coating based on 6ED1055-1MM00-0BA2

Manufacturer's No: 6AG1055-1MM00-7BA2     Manufacturer: Siemens
SIPLUS LOGO! AM2 AQ 0 ... 10 V, 0/4 ... 20 mA For LOGO! 8, -40 ... +70 °C with conformal coating based on 6ED1055-1MM00-0BA2

View 3D

Availability Back Order

£471.00
  • Model: SIPLUS LOGO! AM2 AQ (6ED1055-1MM00-0BA2)
  • Temperature Range: -40°C to +70°C (start-up at -25°C)
  • Conformal coating for enhanced durability
  • Power Supply: 24V DC
  • Expansion module for LOGO! 8
  • Analog Outputs: 2 channels
  • Voltage Output Range: 0-10V
  • Current Output Range: 0/4-20mA
Product video
Product video


Product

Manufacturer Material ID -
6AG1055-1MM00-7BA2
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Resolution of the analogue inputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
None
Analogue outputs configurable -
Depth -
58 Millimetre
Explosion safety category for dust -
None
Height -
90 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
2
Output signal configurable -
Output, current -
Output, voltage -
Resolution of the analogue outputs -
10 Bit
Width -
35.5 Millimetre
