6AV21240QC020AX1

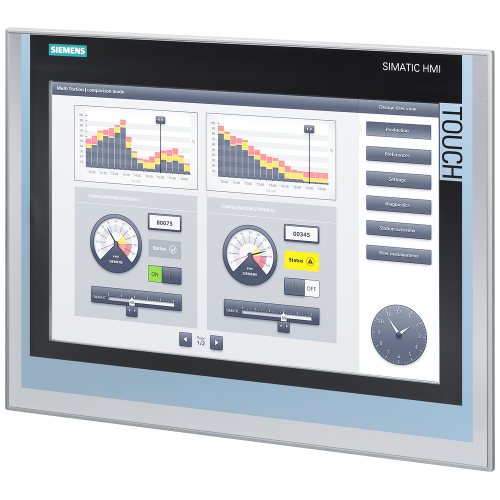

TP1500 Comfort - 15" Colour Touch

Manufacturer's No: 6AV2124-0QC02-0AX1     Manufacturer: Siemens
TP1500 Comfort - 15" Colour Touch

Availability Back Order

POA

This product has been superseded by

6AV21240QC020AX2

Please check compatibility before purchasing.

  • Model: SIMATIC HMI TP1500 Comfort
  • Display: 15" widescreen TFT with 16 million colors
  • Interfaces: PROFINET, MPI/PROFIBUS DP
  • Configuration Memory: 24 MB
  • Operating System: WEC 2013
  • Temperature Range: Up to 50°C (with restrictions up to 55°C)
  • Compatibility: Configurable with WinCC Comfort V14 SP1 with HSP

Accessories



Product

Manufacturer Material ID -
6AV2124-0QC02-0AX1
Net Weight -
5.58kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5A992
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA), front side -
UN
Built-in depth -
75 Millimetre
Operation temperature -
0 Degrees celsius
With printer output -
Number of interfaces PROFINET -
2
Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Height of the front -
310 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
16777216
Number of function buttons, programmable -
0
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of password levels -
50
Number of pixels, horizontal -
1280
Number of pixels, vertical -
800
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
73.2 Millimetre
Screen diagonal -
15.4 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Touch technology -
Resistive touch
Type of display -
TFT
Useful project memory/user memory -
24000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
415 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability Back Order

POA
