6AV66420EA013AX0

The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as

Manufacturer's No: 6AV6642-0EA01-3AX0     Manufacturer: Siemens
The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as

Availability Available to order

POA

This product has been superseded by

6AV21240GC010AX0

Please check compatibility before purchasing.

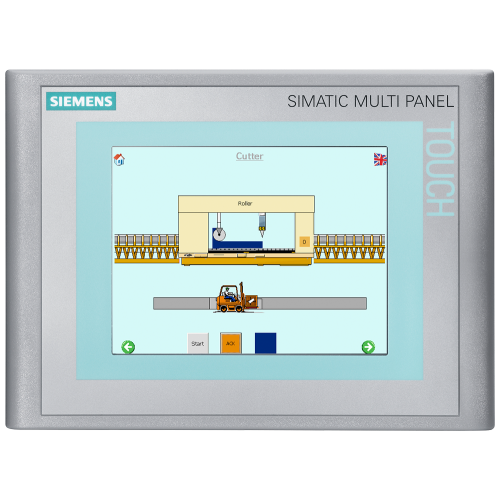

  • SIMATIC MP 177 6" Touch Multi Panel
  • 5.7" TFT display
  • 2 MB configuration memory
  • Configurable with WinCC flexible 2008 Compact or higher
  • Spare parts available for purchase
  • Price of spare parts may differ from new parts
  • New parts blocked for delivery as of 01.01.2015
  • Retentive memory feature included

Accessories



Product

Manufacturer Material ID -
6AV6642-0EA01-3AX0
Net Weight -
1.07kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5D002ENCU
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt

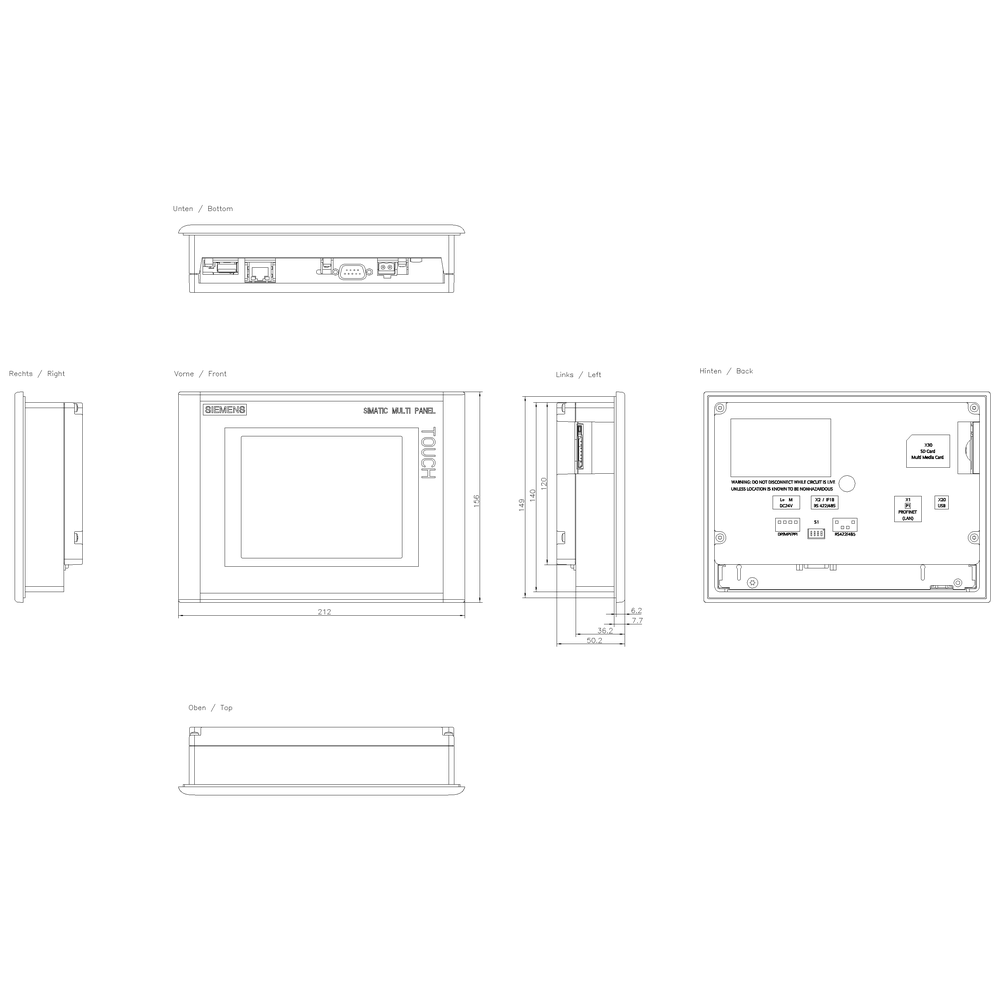

Built-in depth -
45 Millimetre
Operation temperature -
0 Degrees celsius
With printer output -
Number of interfaces PROFINET -
1
Degree of protection (NEMA), front side -
12
Touch technology -
Resistive touch
Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Height of the front -
156 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
65536
Number of function buttons, programmable -
0
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of HW-interfaces Wireless -
0
Number of online languages -
5
Number of password levels -
50
Number of pixels, horizontal -
320
Number of pixels, vertical -
240
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
45 Millimetre
Screen diagonal -
5.7 inch
Supply voltage DC -
20.4 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Type of display -
TFT
Useful project memory/user memory -
2000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
212 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability Available to order

POA
Sign in or Register for customer prices.

This product has been superseded by

6AV21240GC010AX0

Please check compatibility before purchasing.
