6AV66430DB011AX1

The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as

Manufacturer's No: 6AV6643-0DB01-1AX1     Manufacturer: Siemens
The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as

Availability On Request

POA

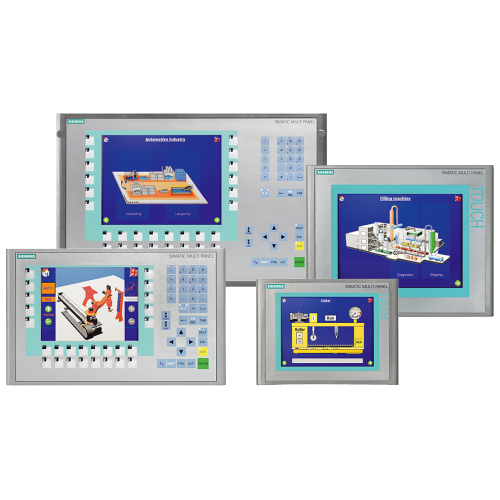

  • SIMATIC MP 277 8" Key Multi Panel
  • 7.5" TFT display
  • 6 MB configuration memory
  • Configurable with WinCC flexible 2005 Standard SP1
  • Spare parts available for purchase
  • New part blocked for delivery as of 01.01.2015
  • Price of spare parts may deviate from new part
  • For more information, refer to SIMATIC current entry ID: 109486162

Accessories



Product

Manufacturer Material ID -
6AV6643-0DB01-1AX1
Net Weight -
3.05kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5D002ENCU
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Built-in depth -
61 Millimetre
Operation temperature -
0 Degrees celsius
With printer output -
Number of interfaces PROFINET -
1
Degree of protection (NEMA), front side -
4X
Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Height of the front -
231 Millimetre
Number of buttons with LED -
18
Number of colours of the display -
65536
Number of function buttons, programmable -
26
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of HW-interfaces Wireless -
0
Number of online languages -
16
Number of password levels -
50
Number of pixels, horizontal -
640
Number of pixels, vertical -
480
Number of system buttons -
36
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
61 Millimetre
Screen diagonal -
7.5 inch
Supply voltage DC -
20.4 Volt
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Touch technology -
None
Type of display -
TFT
Useful project memory/user memory -
6000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
362 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -
