6AV66450CC010AX0

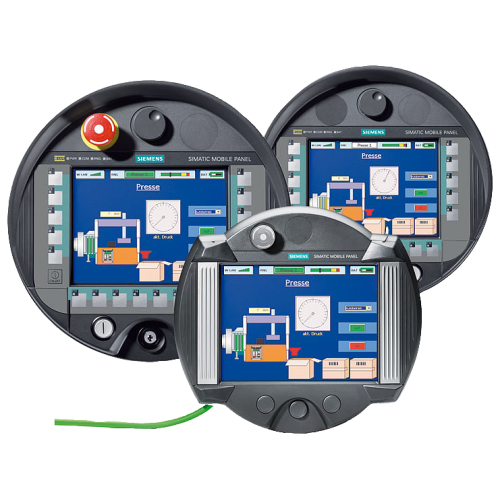

Mobile Panel 277 with acknowledgment pushbutton, STOP pushbutton, handwheel, key and illuminated pushbutton

Manufacturer's No: 6AV6645-0CC01-0AX0     Manufacturer: Siemens
Mobile Panel 277 with acknowledgment pushbutton, STOP pushbutton, handwheel, key and illuminated pushbutton

Availability On Request

POA
  • Mobile Panel 277 with integrated acknowledgment pushbutton
  • STOP pushbutton included
  • Handwheel for control
  • Key-operated switch (D key)
  • Two illuminated pushbuttons
  • Configurable with WinCC flexible Standard Version 2005 SP1 or higher
  • Compatible with TIA Portal V11 to V14


Product

Manufacturer Material ID -
6AV6645-0CC01-0AX0
Net Weight -
2.85kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
AT
Export Control Regulations -
AL: N / ECCN: 5D002ENCU
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of grey-scales/blue-scales of display -
-
Degree of protection (NEMA) -
UN
Operation temperature -
0 Degrees celsius
Degree of protection (IP) -
IP65
Number of interfaces PROFINET -
1
Connection, pluggable -
Degree of protection (IP rating) -
IP65
Depth -
103 Millimetre
Height -
290 Millimetre
Max. height of fall (in accordance with IEC 60068-2-32) -
1.2 Metre
Number of buttons with LED -
18
Number of colours of the display -
65536
Number of function buttons, programmable -
18
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of HW-interfaces Wireless -
0
Number of online languages -
16
Number of password levels -
50
Number of pixels, horizontal -
640
Number of pixels, vertical -
480
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Screen diagonal -
7.5 inch
Suitable for emergency stop -
Suitable for safety functions -
Supply voltage DC -
20.4 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Type of display -
TFT
Useful project memory/user memory -
6000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Weight -
1.7 Kilogram
Width -
290 Millimetre
With colour display -
With enabling button/emergency-stop switch -
With message indication -
With message system (incl. buffer and confirmation) -
With recipes -
With touch screen -
