6AV66461BD221AA0

SIMATIC ITC2200 V3 PRO, Industrial Thin Client, 22" widescreen TFT display, capacitive Touch sensor, prepared for support ar

Manufacturer's No: 6AV6646-1BD22-1AA0     Manufacturer: Siemens

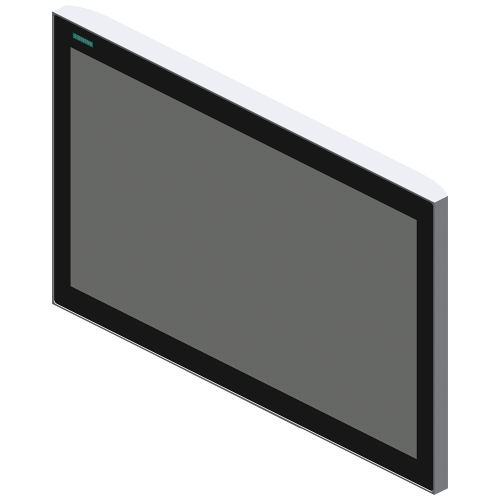

SIMATIC ITC2200 V3 PRO, Industrial Thin Client, 22"  widescreen TFT display, capacitive Touch sensor, prepared for support arm with add-on elements

View 3D

Availability Back Order

POA

This product has been superseded by

6AV66461BD221AA1

Please check compatibility before purchasing.

  • Model: SIMATIC ITC2200 V3 PRO
  • Industrial Thin Client with 22" widescreen TFT display
  • Capacitive touch sensor
  • Supported protocols: RDP, VNC, SMARTSERVER, HTML5
  • Standard design
  • Prepared for support arm with add-on elements

Accessories



Product

Manufacturer Material ID -
6AV6646-1BD22-1AA0
Net Weight -
9.82kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
5A992 / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
Siemens
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA) -
UN
Built-in depth -
101 Millimetre
Operation temperature -
0 Degrees celsius
Number of interfaces PROFINET -
2
STATFLAG -
B
Number of HW-interfaces Wireless -
0
Preinstalled operating system -
None
Type of display -
TFT
Degree of protection (IP), front side -
IP65
Height of the front -
330 Millimetre
Max. main memory -
2000 Megabyte
Mounting type, gallows mounting -
Number of buttons with LED -
0
Number of free AGP-slots -
0
Number of free ISA-slots -
0
Number of free PCI-slots -
0
Number of free PCMCIA-slots -
0
Number of function buttons -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces PS2 -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces SCSI -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of pixels, horizontal -
1920
Number of pixels, vertical -
1080
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Recess depth -
101 Millimetre
Screen diagonal -
21.5 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for other bus systems -
Voltage type of supply voltage -
DC
Width of the front -
527 Millimetre
With hard disc -
With touch screen -

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

6AV66461BD221AA1

Please check compatibility before purchasing.
