6ES71314RD020AB0

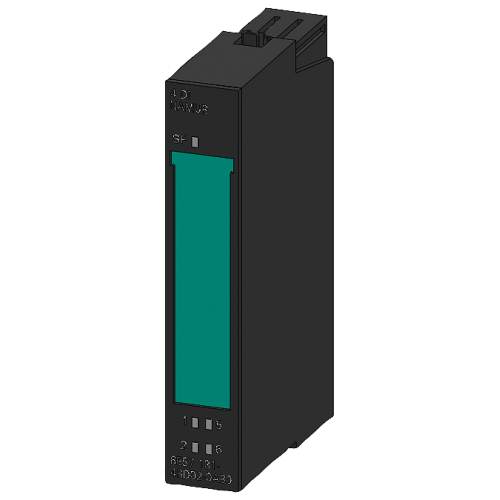

Electronics module ET 200S: 4 DI 24 V DC NAMUR, 15 mm width, with SF LED (group fault)

Manufacturer's No: 6ES7131-4RD02-0AB0     Manufacturer: Siemens
Electronics module ET 200S: 4 DI 24 V DC NAMUR, 15 mm width, with SF LED (group fault)

Availability Available to order

POA
  • Electronics module: ET 200S
  • 4 digital inputs: 24V DC NAMUR
  • Width: 15mm
  • Features SF LED for group fault detection

Accessories



Product

Manufacturer Material ID -
6ES7131-4RD02-0AB0
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
CN
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Input current at signal 1 -
- Milliampere
Output current -
- Ampere
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
0 Millisecond
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20
Depth -
52 Millimetre
Digital inputs configurable -
Fieldbus connection over separate bus coupler possible -
Height -
81 Millimetre
Number of digital inputs -
4
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Supply voltage DC -
20.4 Volt
System accessory -
Time delay at signal change -
0.0046 Millisecond
Type of digital output -
None
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
15 Millimetre
-
- Electronics module: ET 200S - 4 digital inputs: 24V DC NAMUR - Width: 15mm - Features SF LED for group fault detection

Availability Available to order

POA
