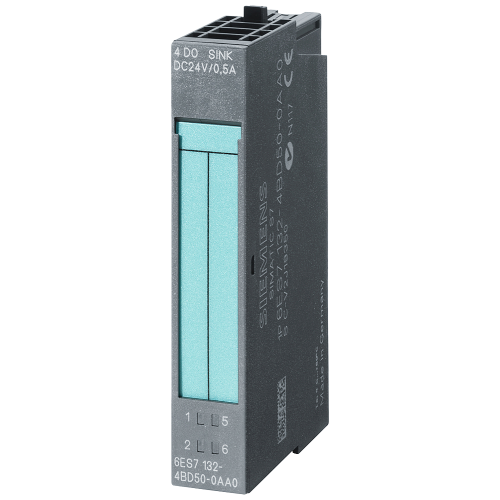

6ES71324BD020AA0

ET200S 4x digital outputs, 4 Outputs, 24Vdc, 0.5A Standard (Pack Of 5) , (terminal type A or B required)

Manufacturer's No: 6ES7132-4BD02-0AA0     Manufacturer: Siemens
ET200S 4x digital outputs, 4 Outputs, 24Vdc, 0.5A Standard (Pack Of 5) , (terminal type A or B required)

View 3D

Availability Back Order

POA
  • Product: ET200S Digital Output Module
  • Quantity: Pack of 5
  • Number of Outputs: 4
  • Voltage: 24V DC
  • Current: 0.5A
  • Terminal Type: A or B required
  • Module Width: 15mm
  • Packaging: 5 units per pack
  • Compatible with SIMATIC DP
  • Specifically designed for ET 200S system

Accessories



Product

Manufacturer Material ID -
6ES7132-4BD02-0AA0
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Input current at signal 1 -
- Milliampere
Type of voltage (input voltage) -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
0.05 Millisecond
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Type of digital output -
Other
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20

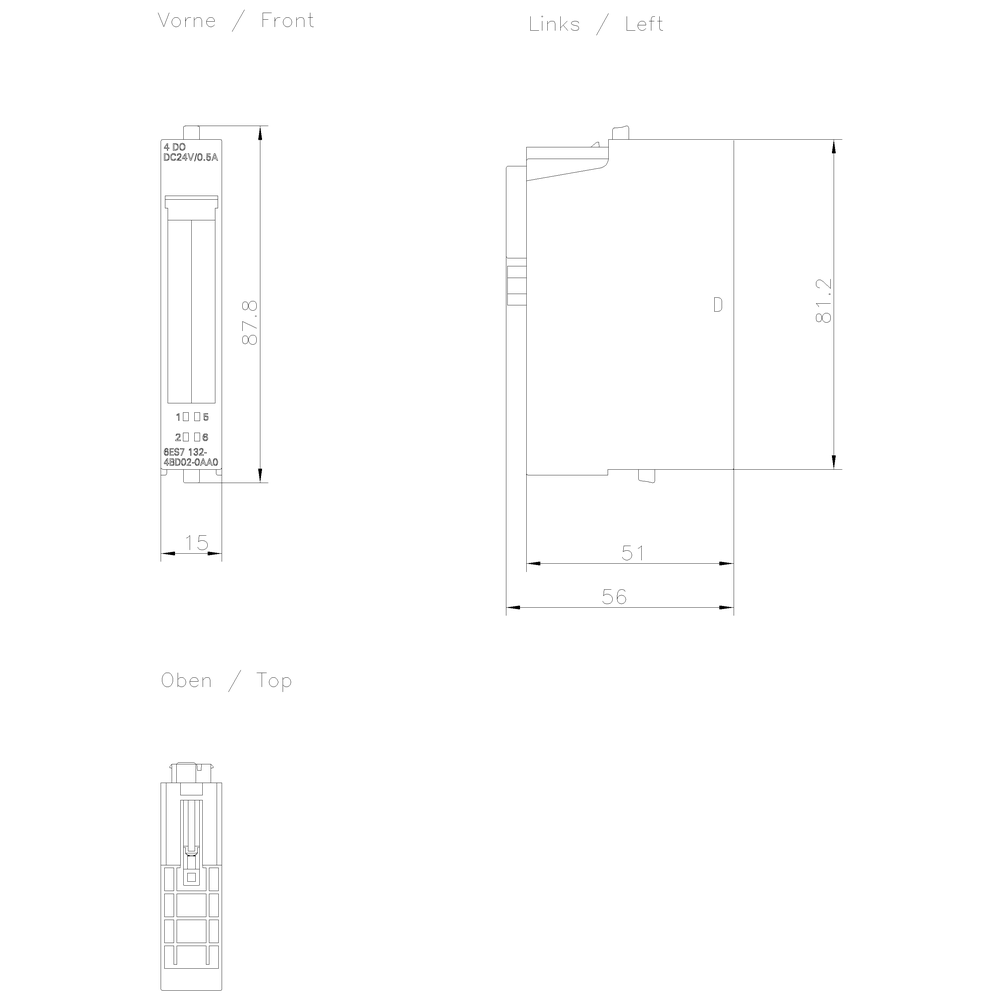

Depth -
52 Millimetre
Digital outputs configurable -
Fieldbus connection over separate bus coupler possible -
Height -
81 Millimetre
Number of digital inputs -
0
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
0.5 Ampere
Permitted voltage at output -
17.4 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
Supply voltage DC -
20.4 Volt
System accessory -
Time delay at signal change -
0.05 Millisecond
Type of output voltage -
DC
Voltage type of supply voltage -
DC
Width -
15 Millimetre
