6ES71344GB520AB0

SIMATIC DP, Electronics module ET200S: 2AI High Speed I-2-wire 0-20 mA; 4.. 20mA, 15 bit, 15 mm widt

Manufacturer's No: 6ES7134-4GB52-0AB0     Manufacturer: Siemens
SIMATIC DP, Electronics module ET200S: 2AI High Speed I-2-wire 0-20 mA; 4.. 20mA, 15 bit, 15 mm widt

Availability Available to order

POA
  • Module: SIMATIC DP Electronics ET200S
  • Analog Inputs: 2AI High Speed
  • Input Type: 2-wire 0-20 mA; 4-20 mA
  • Resolution: 15 bit
  • Module Width: 15 mm
  • Transducer Compatibility: 2-wire
  • Cycle Time: 0.1 ms
  • Features SF LED for group fault detection

Accessories



Product

Manufacturer Material ID -
6ES7134-4GB52-0AB0
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Resolution of the analogue outputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Analogue inputs configurable -
Degree of protection (IP rating) -
IP20

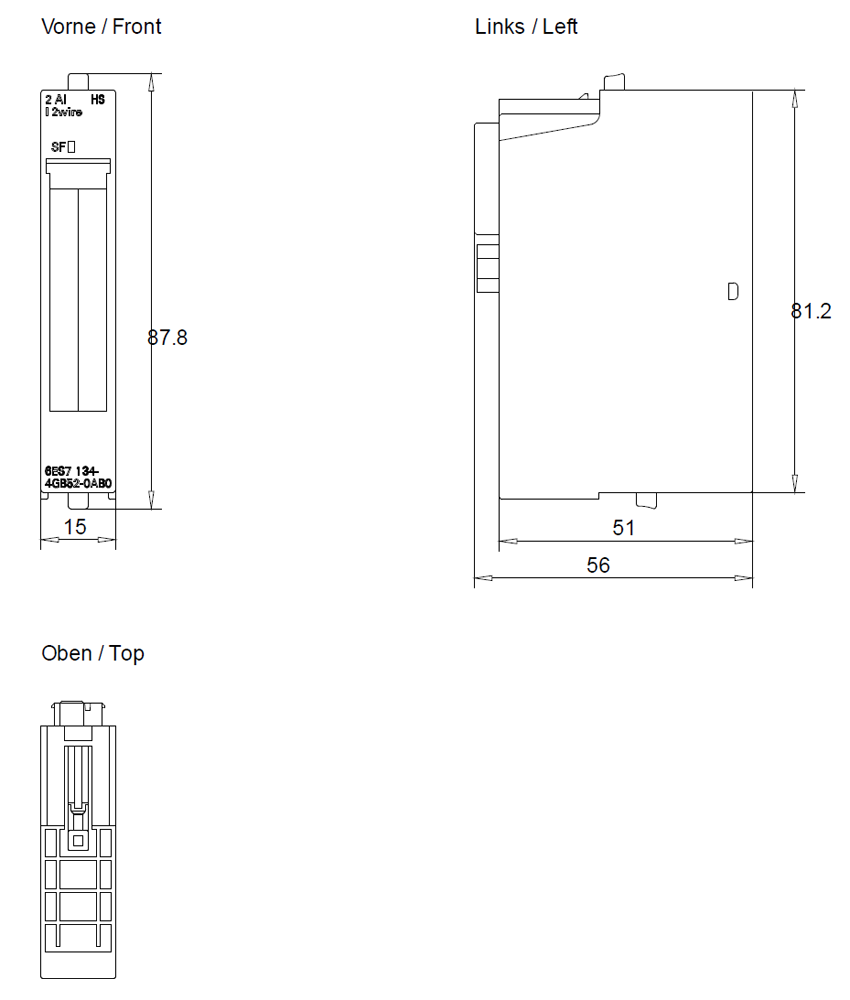

Depth -
52 Millimetre
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
81 Millimetre
Input signal, configurable -
Input, current -
Number of analogue inputs -
2
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
Supply voltage DC -
20.4 Volt
System accessory -
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
15 Millimetre

Availability Available to order

POA
