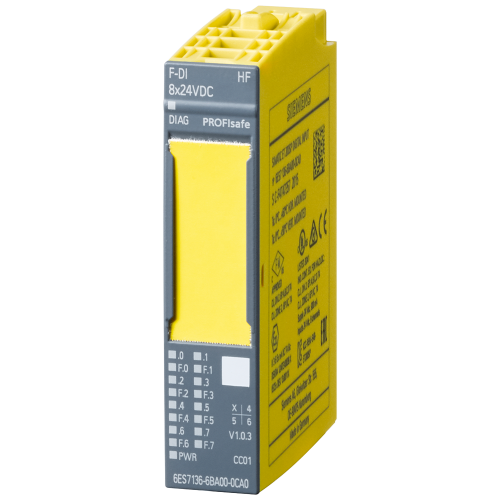

6ES71366BA000CA0

ET200SP 8 F DI - 8 x 24 VDC Safe Inputs, High Feature, A0 BU required

Manufacturer's No: 6ES7136-6BA00-0CA0     Manufacturer: Siemens
ET200SP 8 F DI - 8 x 24 VDC Safe Inputs, High Feature, A0 BU required

View 3D

Availability Back Order

£232.00
  • Electronics module for ET 200SP
  • F-DI 8x 24 V DC HF
  • 15 mm width
  • Suitable for up to PL E (ISO 13849-1) and SIL3 (IEC 61508)

Accessories

Product video
Product video


Product

Manufacturer Material ID -
6ES7136-6BA00-0CA0
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Output current -
- Ampere
Category according to EN 954-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at output -
- Volt
Type of output voltage -
UN
Time delay at signal exchange -
0.4 Millisecond
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Performance level acc. EN ISO 13849-1 -
Level e
Type of electric connection -
Plug-in connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Digital inputs configurable -
Fieldbus connection over separate bus coupler possible -
Height -
73 Millimetre
Input current at signal 1 -
3.7 Milliampere
Number of digital inputs -
8
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Permitted voltage at input -
-30 Volt
Rail mounting possible -
Suitable for safety functions -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFIsafe -
System accessory -
Time delay at signal change -
0.4 Millisecond
Type of digital output -
None
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
15 Millimetre

Availability Back Order

£232.00
