6ES71384CA500AB0

SIMATIC DP, PM-E power modules for ET 200S; 24 V-48 V DC with diagnostics

Manufacturer's No: 6ES7138-4CA50-0AB0     Manufacturer: Siemens
SIMATIC DP, PM-E power modules for ET 200S; 24 V-48 V DC with diagnostics

Availability On Request

POA
  • Power modules for ET 200S
  • Input voltage: 24 V-48 V DC
  • Includes diagnostics

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6ES7138-4CA50-0AB0
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
CN
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Type of electric connection -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Voltage type of supply voltage -
DC
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
With potential separation -
Rail mounting possible -
Bus diagnosis possible -
With power supply module -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Fieldbus connection over separate bus coupler possible -
Suitable as segment module -
System accessory -
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Number of HW-interfaces Wireless -
0
Front build in possible -
Wall mounting/direct mounting -
Supply voltage DC -
20.4 Volt

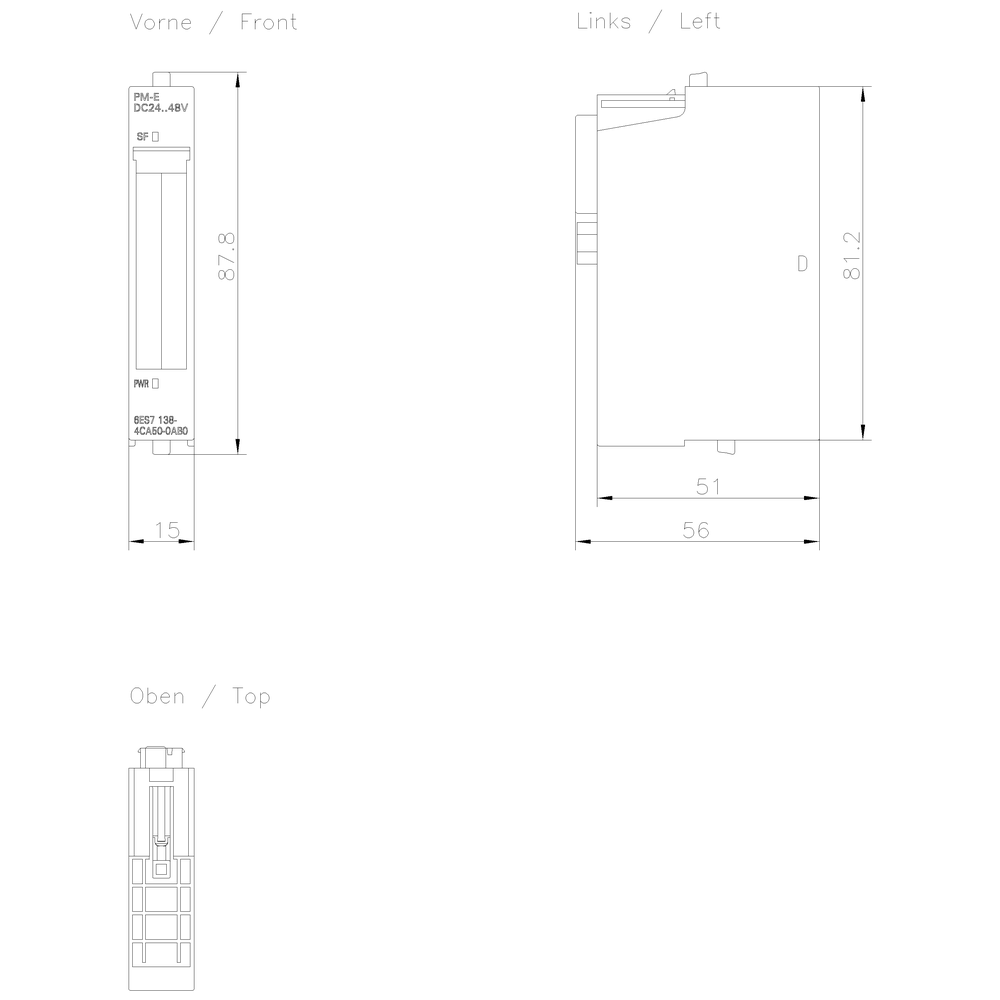

Depth -
52 Millimetre
Height -
81 Millimetre
Input voltage at DC -
20.4 Volt
Max. output current DC -
10 Ampere
Output voltage at DC -
20.4 Volt
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Width -
15 Millimetre
