6ES71384DA040AB0

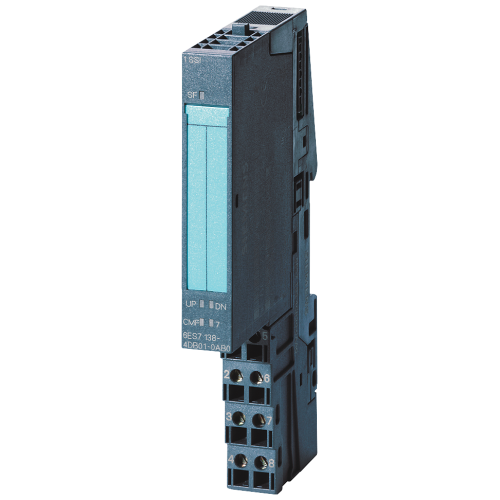

ET200S HSC, 1 Count 24V/100Khz Counter Module (Incremental), (terminal type A or B required)

Manufacturer's No: 6ES7138-4DA04-0AB0     Manufacturer: Siemens
ET200S HSC, 1 Count 24V/100Khz Counter Module (Incremental), (terminal type A or B required)

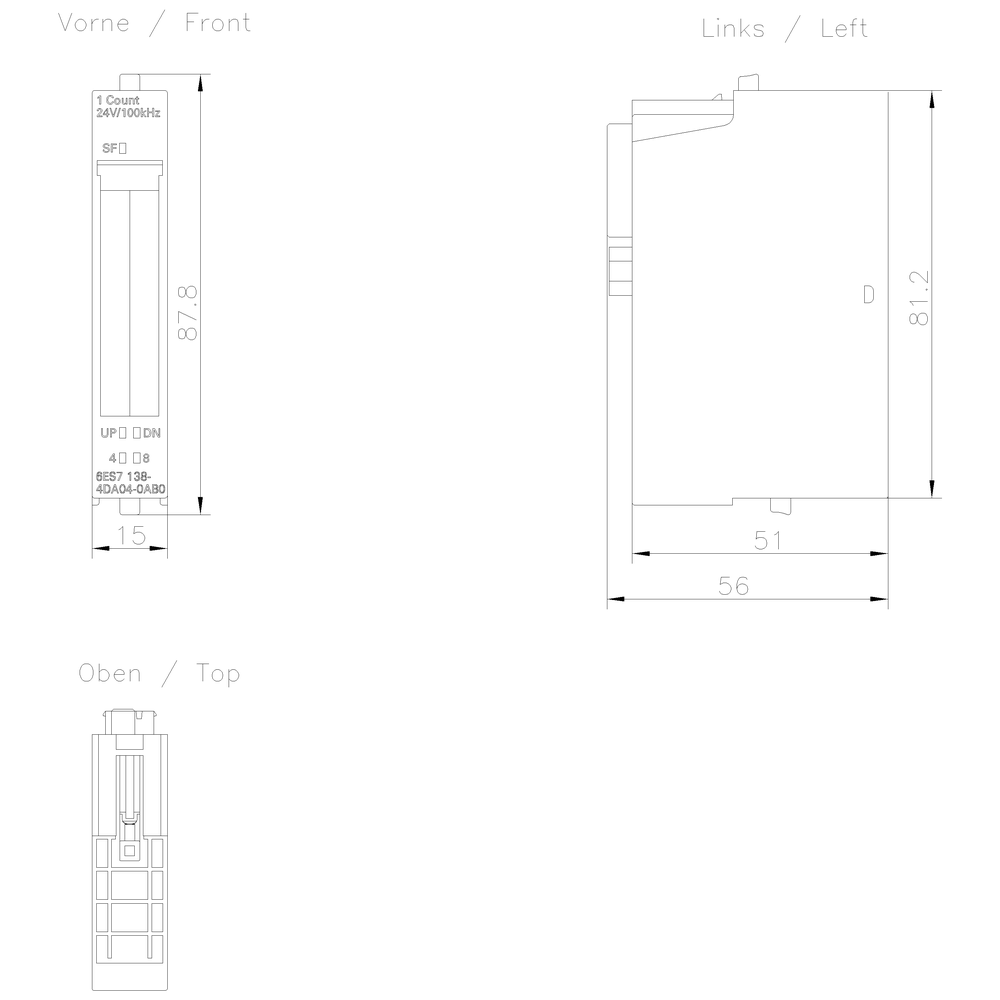

View 3D

Availability Back Order

POA
  • ET200S HSC Counter Module
    • 1 count
    • 24V
    • 100 kHz
    • Incremental
    • Terminal type A or B required
    • SIMATIC DP compatible
    • 15 mm installation width
    • Operating modes: Count, Measure
    • Cycle duration measurement
    • High-resolution
    • Clock synchronization
  • 1 count
  • 24V
  • 100 kHz
  • Incremental
  • Terminal type A or B required
  • SIMATIC DP compatible
  • 15 mm installation width
  • Operating modes: Count, Measure
  • Cycle duration measurement

Read more

  • High-resolution
  • Clock synchronization

Accessories



Product

Manufacturer Material ID -
6ES7138-4DA04-0AB0
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Number of functions -
-
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Degree of protection (IP rating) -
IP20
Depth -
52 Millimetre
Explosion safety category for dust -
None
Height -
81 Millimetre
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Suitable for counting -
Suitable for detection absolute value -
Supply voltage DC -
20.4 Volt
System accessory -
Voltage type of supply voltage -
DC
Width -
15 Millimetre

Availability Back Order

POA
