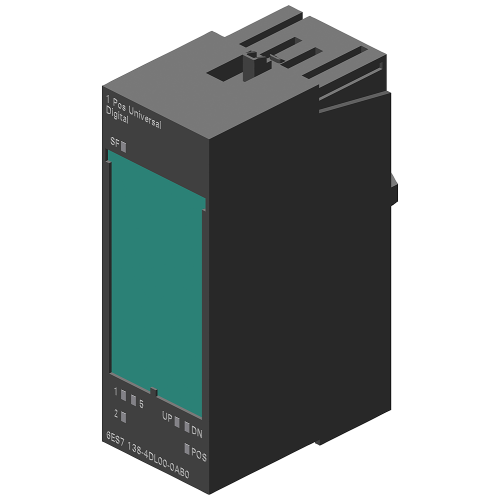

6ES71384DL000AB0

ET200S POS, 1 channel positioning INC. / SSI encoders, digital outputs except, (terminal type C required)

Manufacturer's No: 6ES7138-4DL00-0AB0     Manufacturer: Siemens
ET200S POS, 1 channel positioning INC. / SSI encoders, digital outputs except, (terminal type C required)

View 3D

Availability Back Order

POA
  • ET200S POS module for controlled positioning
  • Supports INC/SSI encoders
  • Digital outputs for 5V/24V incremental encoder
  • Requires terminal type C
  • 30mm overall width

Accessories



Product

Manufacturer Material ID -
6ES7138-4DL00-0AB0
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Number of functions -
-
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Degree of protection (IP rating) -
IP20

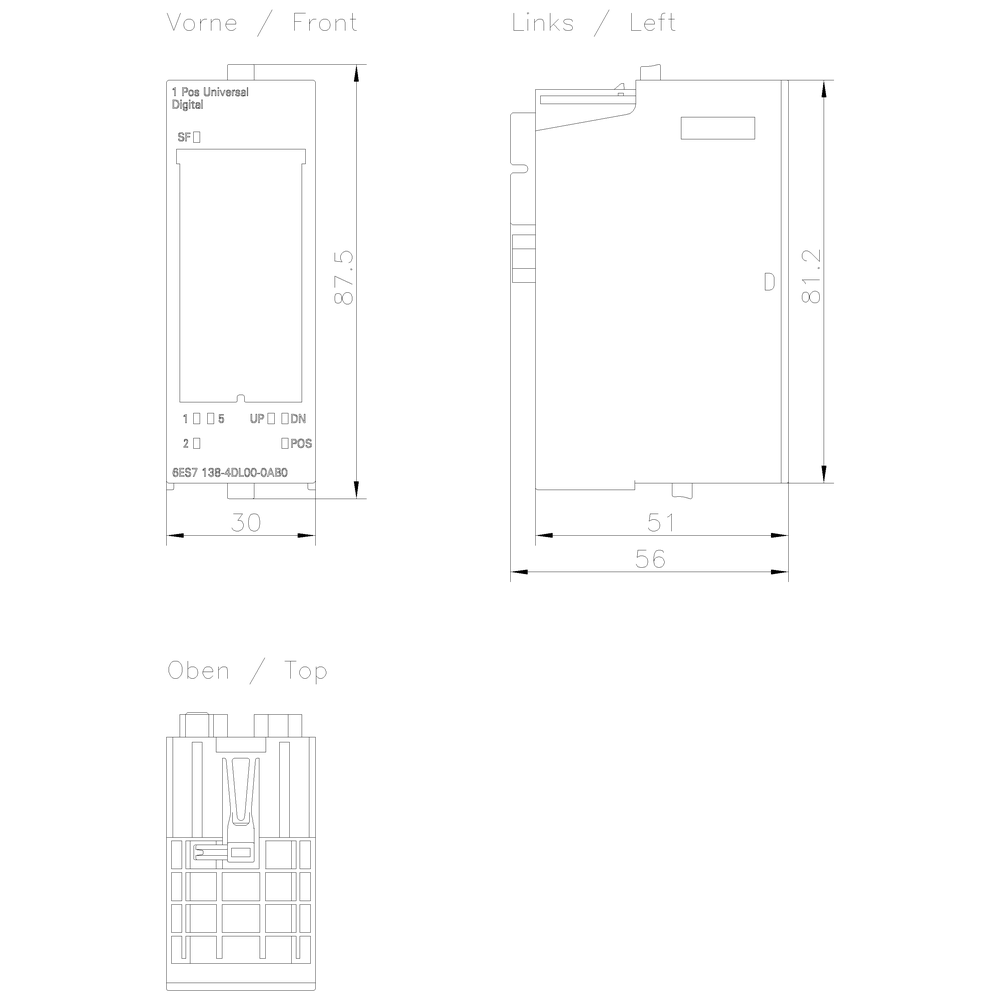

Depth -
52 Millimetre
Explosion safety category for dust -
None
Function electronic positioning available -
Height -
81 Millimetre
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Single-axis positioning possible -
Suitable for detection absolute value -
Suitable for flying saw -
Suitable for incremental data detection -
Suitable for multi-axis positioning -
Suitable for SSI -
Supply voltage DC -
20.4 Volt
System accessory -
Voltage type of supply voltage -
DC
Width -
30 Millimetre

Availability Back Order

POA
