6ES71384FB040AB0

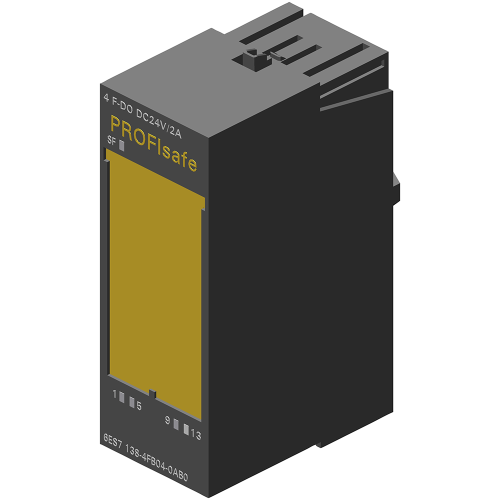

SIMATIC ET 200S 4F-DQ 24 V DC/2 A PROFIsafe

Manufacturer's No: 6ES7138-4FB04-0AB0     Manufacturer: Siemens
SIMATIC ET 200S 4F-DQ 24 V DC/2 A PROFIsafe

View 3D

Availability Back Order

POA
  • SIMATIC ET 200S 4F-DQ 24 V DC/2 A PROFIsafe
  • Electronics module for ET 200S
  • 4 F-DO PROFIsafe, 24 V DC/2 A
  • 30 mm overall width
  • Suitable for up to PL E (ISO 13849) and up to SIL 3 (IEC 61508)
  • Compatible with PROFINET configuration with IM 151-3 HF

Accessories



Product

Manufacturer Material ID -
6ES7138-4FB04-0AB0
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
Siemens
Input current at signal 1 -
- Milliampere
Time delay at signal exchange -
- Millisecond
Type of voltage (input voltage) -
UN
Category according to EN 954-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Performance level acc. EN ISO 13849-1 -
Level e
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Degree of protection (IP rating) -
IP20
Depth -
52 Millimetre
Digital outputs configurable -
Fieldbus connection over separate bus coupler possible -
Height -
81 Millimetre
Number of digital inputs -
0
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
2 Ampere
Permitted voltage at output -
20.4 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
Suitable for safety functions -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
System accessory -
Type of digital output -
Transistor
Type of output voltage -
DC
Voltage type of supply voltage -
DC
Width -
30 Millimetre
