6ES71386BA000BA0

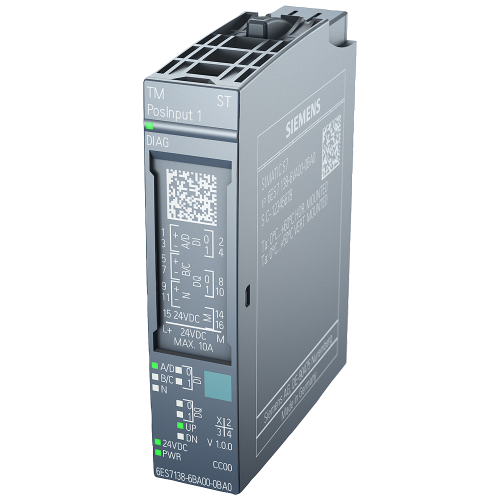

ET 200SP, TM Posinput 1 Count & Position Input Module for RS422 incremental Encoder or SSI Absolute Encoder, 2DQ, 3DQ

Manufacturer's No: 6ES7138-6BA00-0BA0     Manufacturer: Siemens
ET 200SP, TM Posinput 1 Count & Position Input Module for RS422 incremental Encoder or SSI Absolute Encoder, 2DQ, 3DQ

View 3D

Availability Back Order

POA

This product has been superseded by

6ES71386BA010BA0

Please check compatibility before purchasing.

  • ET 200SP TM Posinput 1 Count & Position Input Module
  • Compatible with RS422 incremental Encoder or SSI Absolute Encoder
  • Discontinued since: 01/10/22
  • Successor: 6ES7138-6BA01-0BA0
Product video


Product

Manufacturer Material ID -
6ES7138-6BA00-0BA0
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of functions -
-
Explosion safety category for gas -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Degree of protection (IP rating) -
IP20

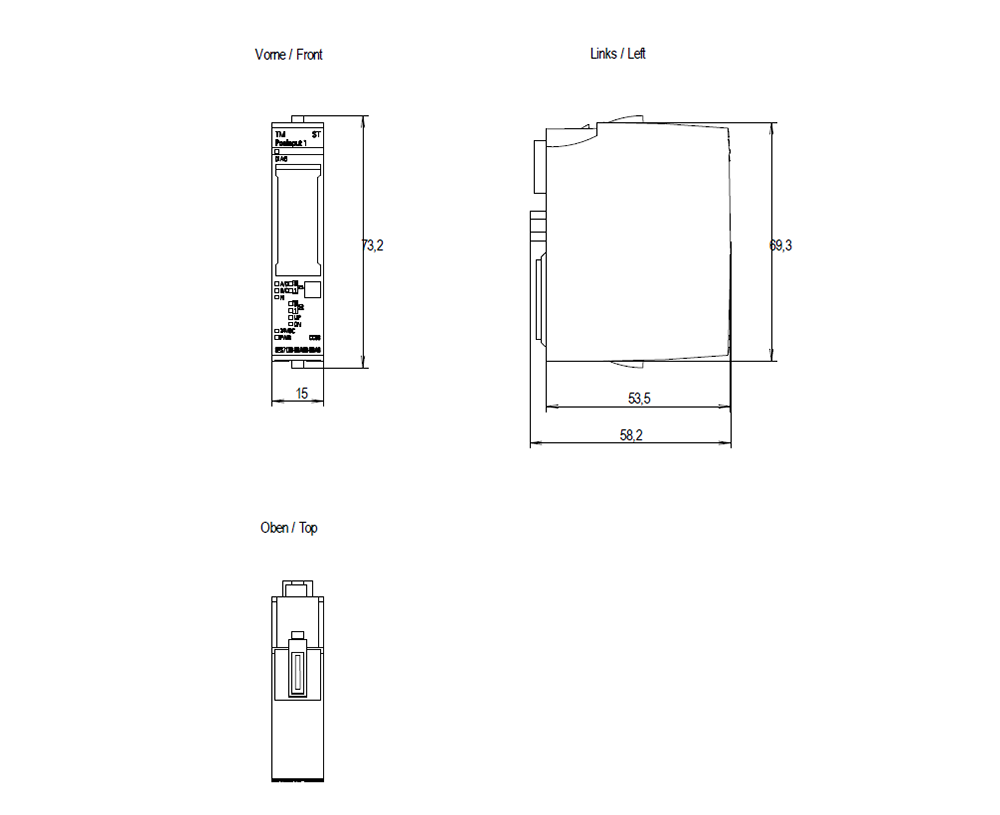

Depth -
58 Millimetre
Explosion safety category for dust -
None
Frequency measurement -
Function electronic positioning available -
Height -
73 Millimetre
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Single-axis positioning possible -
Suitable for counting -
Suitable for detection absolute value -
Suitable for incremental data detection -
Suitable for SSI -
Supply voltage DC -
19.2 Volt
System accessory -
Voltage type of supply voltage -
DC
Width -
15 Millimetre

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

6ES71386BA010BA0

Please check compatibility before purchasing.
