6ES71456HD000AB0

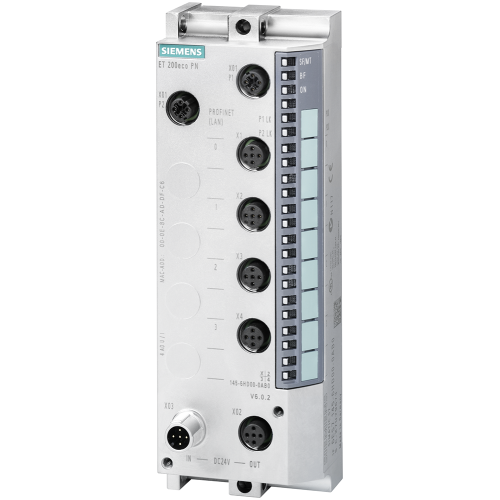

BM145 PN, analogue output module 4 AO, V / mA, 4xM12

Manufacturer's No: 6ES7145-6HD00-0AB0     Manufacturer: Siemens
BM145 PN, analogue output module 4 AO, V / mA, 4xM12

Availability On Request

POA
  • SIMATIC DP ET 200ECO PN
  • 4 analog outputs for voltage and current
  • 4 M12 connectors
  • IP67 protection rating

Accessories

Spare part

Product video
Product video
Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7145-6HD00-0AB0
Net Weight -
0.97kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Resolution of the analogue inputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP65/IP67
Number of interfaces PROFINET -
1
Front build in possible -
Type of electric connection -
Plug-in connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Degree of protection (IP rating) -
IP65/IP67
Analogue outputs configurable -
Depth -
49 Millimetre
Front built-in possible -
Height -
175 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output signal configurable -
Output, current -
Output, voltage -
Rail mounting possible -
Resolution of the analogue outputs -
16 Bit
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFINET IO -
System accessory -
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
60 Millimetre

Availability On Request

POA
