6ES71511BA020AB0

IM151-1 HF DP, Profibus DP up to 12 Mbit/s, Max 63 Modules with advanced diagnostics

Manufacturer's No: 6ES7151-1BA02-0AB0     Manufacturer: Siemens
IM151-1 HF DP, Profibus DP up to 12 Mbit/s, Max 63 Modules with advanced diagnostics

View 3D

Availability Back Order

POA
  • Model: IM151-1 HF DP
  • Communication Protocol: Profibus DP up to 12 Mbit/s
  • Max. Number of Connected Modules: 63
  • Data Volume: 244 bytes for each I/O
  • Bus Connection: 9-pin D-sub
  • Isochronous Mode Supported
  • Includes Advanced Diagnostics
  • Suitable for SIMATIC DP
  • Interface Module for ET200S


Product

Manufacturer Material ID -
6ES7151-1BA02-0AB0
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP20
Front build in possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20

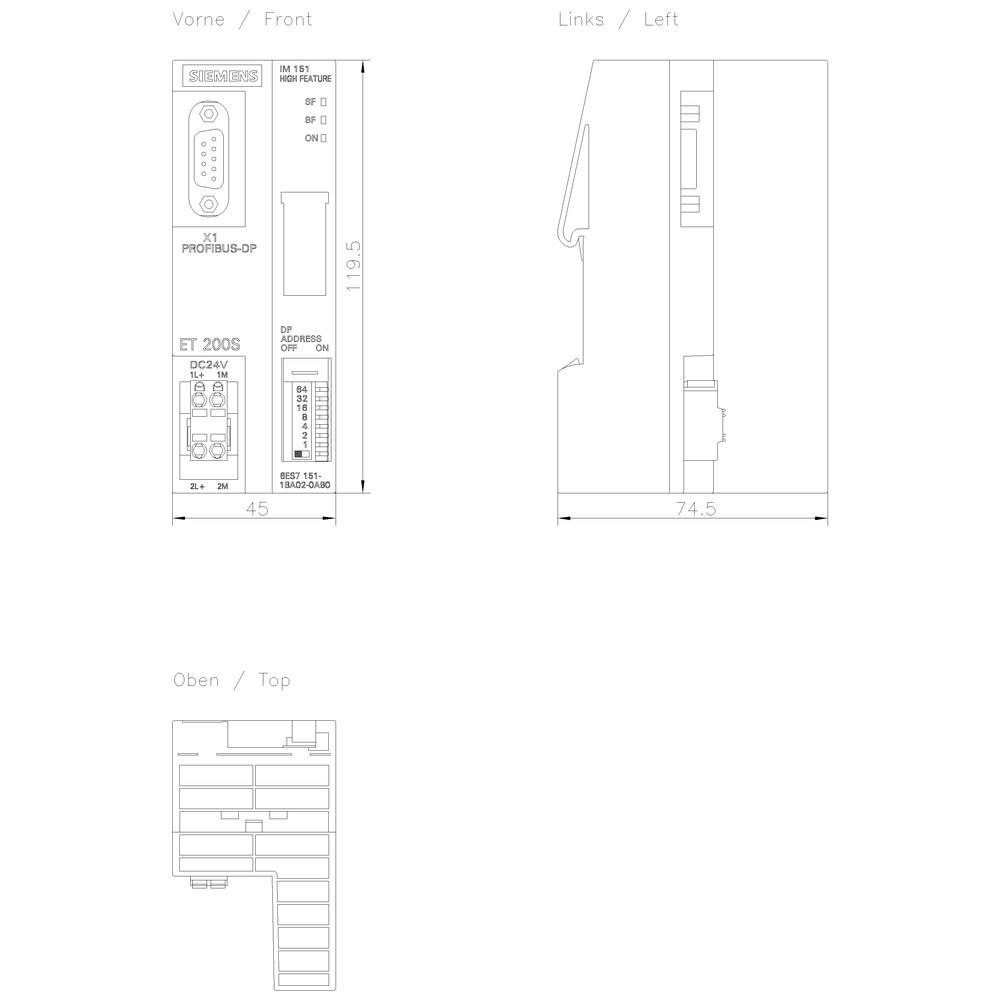

Depth -
75 Millimetre
Height -
119.5 Millimetre
Rail mounting possible -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFIBUS -
Supporting protocol for PROFIsafe -
System accessory -
Voltage type of supply voltage -
DC
Width -
45 Millimetre
With potential separation -
