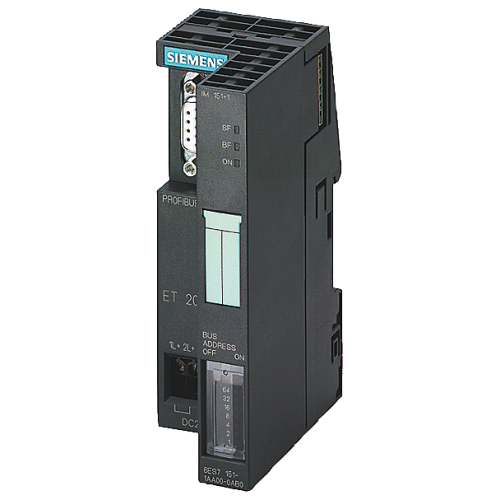

6ES71511CA000AB0

IM151-1 Basic DP, Profibus DP up to 12 Mbit/s, Max 12 Modules

Manufacturer's No: 6ES7151-1CA00-0AB0     Manufacturer: Siemens
IM151-1 Basic DP, Profibus DP up to 12 Mbit/s, Max 12 Modules

View 3D

Availability Back Order

POA
  • Model: IM151-1 Basic DP
  • Communication Protocol: Profibus DP, up to 12 Mbit/s
  • Maximum Modules: 12 (power, electronic, or motor starter modules, excluding F modules)
  • Compatibility: SIMATIC DP, ET 200S
  • Interface: 9-pin D-sub for bus connection with termination module


Product

Manufacturer Material ID -
6ES7151-1CA00-0AB0
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP) -
IP20
Front build in possible -
Degree of protection (IP rating) -
IP20
Depth -
75 Millimetre
Front built-in possible -
Height -
119.5 Millimetre
Rack-assembly possible -
Rail mounting possible -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFIBUS -
System accessory -
Voltage type of supply voltage -
DC
Width -
45 Millimetre
With potential separation -
