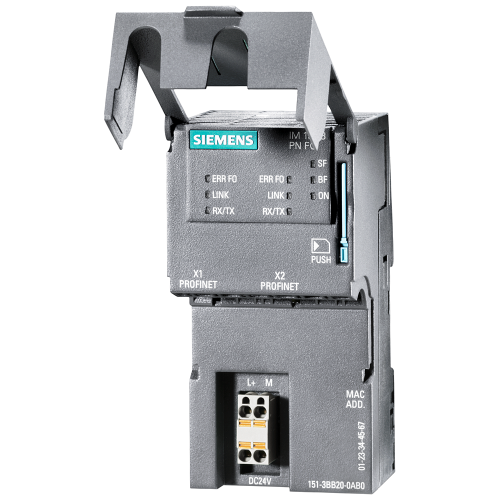

6ES71513BB230AB0

IM151-3 FO PN **, PROFINET 2 FO-interfaces and integrated 2-port Switch, max. 63 modules

Manufacturer's No: 6ES7151-3BB23-0AB0     Manufacturer: Siemens
IM151-3 FO PN **, PROFINET 2 FO-interfaces and integrated 2-port Switch, max. 63 modules

Availability On Request

POA
  • Interface Module: IM151-3 PN FO
  • Communication Protocol: PROFINET
  • Interfaces: 2 FO-interfaces
  • Switch: Integrated 2-port switch
  • Maximum Supported Modules: 63
  • Compatibility: SIMATIC DP, ET 200S
  • Station Width: Up to 2 meters
  • Additional Feature: Supports PROFIsafe modules
  • Termination Module: Included

Accessories



Product

Manufacturer Material ID -
6ES7151-3BB23-0AB0
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP) -
IP20
Front build in possible -
Degree of protection (IP rating) -
IP20

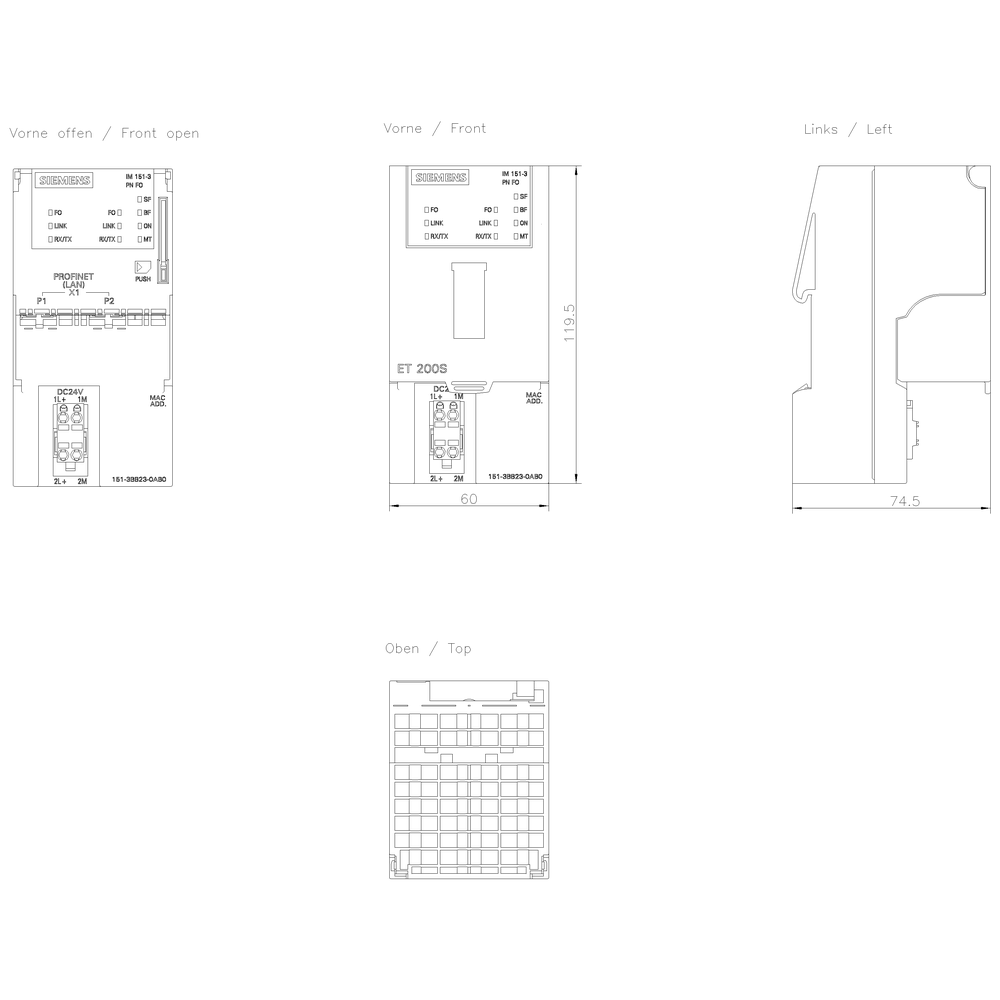

Depth -
75 Millimetre
Height -
119.5 Millimetre
Rail mounting possible -
Suitable for safety functions -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
System accessory -
Voltage type of supply voltage -
DC
Width -
60 Millimetre
With potential separation -
