6ES71517AA210AB0

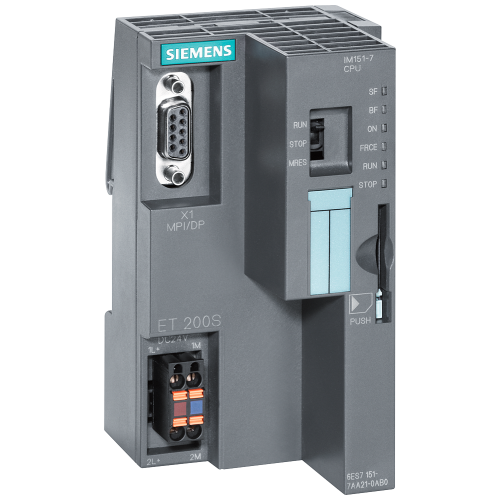

IM151-7 CPU **, S7 300 CPU:128 MB memory is, the MPI / DP slave port

Manufacturer's No: 6ES7151-7AA21-0AB0     Manufacturer: Siemens
IM151-7 CPU **, S7 300 CPU:128 MB memory is, the MPI / DP slave port

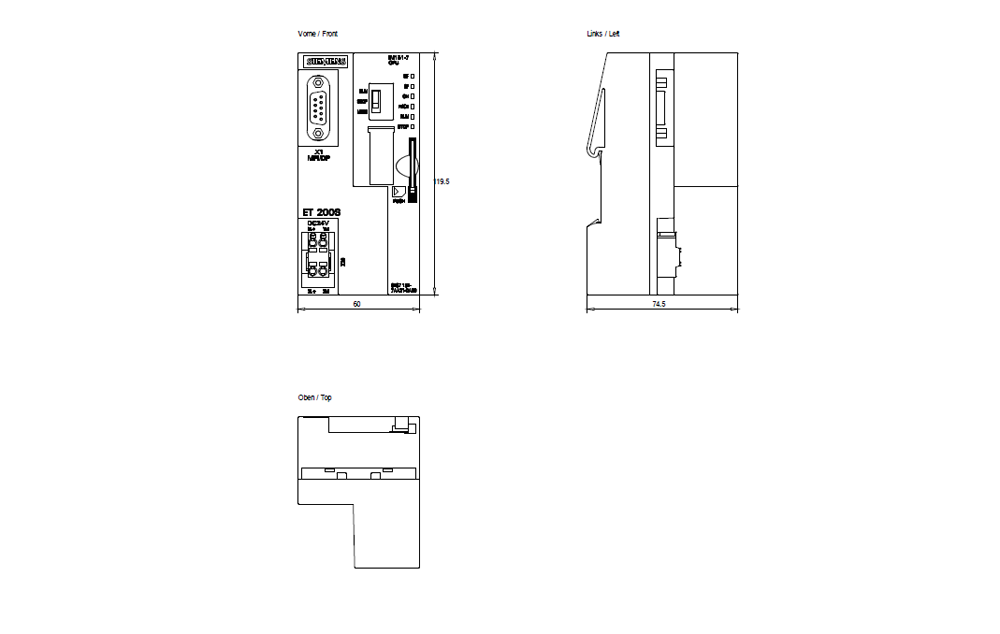

View 3D

Availability Back Order

POA
  • Model: IM151-7 CPU
  • S7 300 CPU with 128 MB memory
  • Features MPI/DP slave port
  • Designed for ET200S with integrated PROFIBUS DP interface
  • 128 KB work memory
  • DP slave with 9-pole D-sub socket
  • Does not require a battery
  • Compatible with SIMATIC MMC

Accessories



Product

Manufacturer Material ID -
6ES7151-7AA21-0AB0
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Output voltage at DC -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. output current DC -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Performance level acc. EN ISO 13849-1 -
UN
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
With bus coupler for modular station connection -
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Type of electric connection -
Screw-/spring clamp connection
Max. input current DC -
0.32 Ampere
Bus coupler for modular station connection available -
Degree of protection (IP rating) -
IP20
Depth -
75 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
119.5 Millimetre
Input voltage at DC -
19.2 Volt
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of slots -
63
Rail mounting possible -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
System accessory -
Type of voltage (input voltage) -
DC
Wall mounting/direct mounting -
Width -
60 Millimetre
With integrated power supply -
With pluggable modules, analogue I/O -
With pluggable modules, central modules -
With pluggable modules, communication modules -
With pluggable modules, digital I/O -
With pluggable modules, function and technology modules -
With pluggable modules, others -
With potential separation -

Availability Back Order

POA
