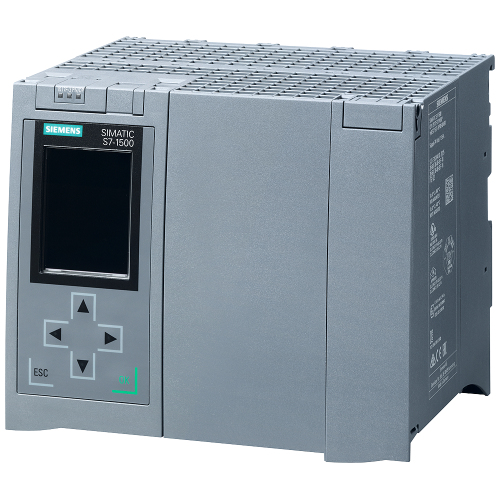

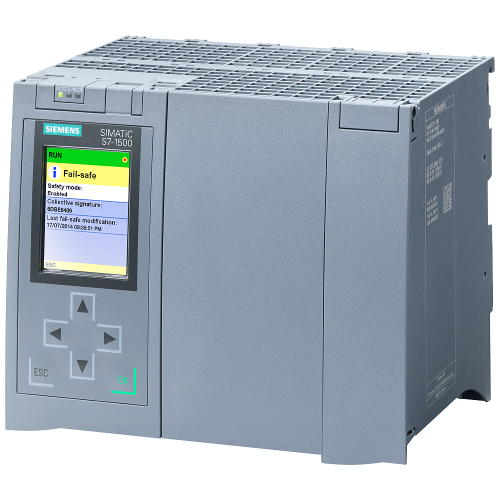

6ES75173FP000AB0

CPU 1517F-3 PN/DP, 3 MB / 8 MB, 2xPN interface, 1 with 2 port switch, 1xDP interface, requires MMC

Manufacturer's No: 6ES7517-3FP00-0AB0     Manufacturer: Siemens
CPU 1517F-3 PN/DP, 3 MB / 8 MB, 2xPN interface, 1 with 2 port switch, 1xDP interface, requires MMC

Availability Back Order

£6,137.00

This product has been superseded by

6ES75173FP010AB0

Please check compatibility before purchasing.

  • SIMATIC S7-1500F, CPU 1517F-3 PN/DP
  • Work memory: 3 MB for program, 8 MB for data
  • Interfaces:
    • 1st: PROFINET IRT with 2-port switch
    • 2nd: PROFINET RT
    • 3rd: PROFIBUS
  • 2 ns bit performance
  • SIMATIC Memory Card required

Mandatory additional product

Selectable mandatory product

Spare part

Product video
Product video


Product

Manufacturer Material ID -
6ES7517-3FP00-0AB0
Net Weight -
2.07kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
-
Siemens
Category according to EN 954-1 -
UN
Max. number of time switches -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
With display -
Number of interfaces PROFINET -
2
Performance level acc. EN ISO 13849-1 -
Level e
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Depth -
129 Millimetre
Display -
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
147 Millimetre
Memory size -
11000 kiloByte (1000 Byte)
Model -
Modular
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
0
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.002 Millisecond
Rail mounting possible -
Suitable for safety functions -
Supply voltage DC -
19.2 Volt
Supporting protocol for MODBUS -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
System accessory -
Type of memory -
Other
Voltage type of supply voltage -
DC
Width -
175 Millimetre

Availability Back Order

£6,137.00
Sign in or Register for customer prices.

This product has been superseded by

6ES75173FP010AB0

Please check compatibility before purchasing.
