6780101 {T}

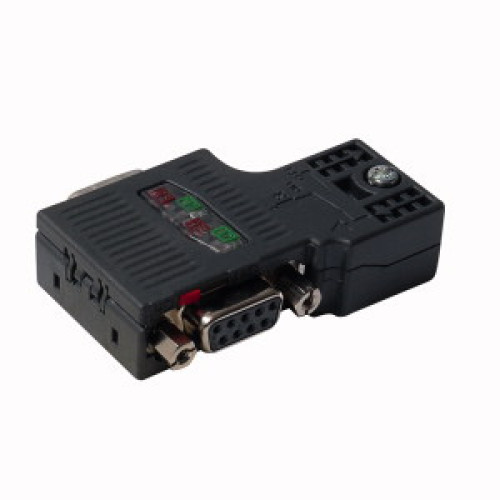

Field-Wireable Connector, Sub-D Connector, Male Connector, Angled, Voltage

Manufacturer's No: 6ES7972-0BB52-0XA0-IP20FC-PG     Manufacturer: Turck Banner
Field-Wireable Connector, Sub-D Connector, Male Connector, Angled, Voltage

Availability Available to order

£90.29
  • Field-wireable Sub-D male connector
  • Designed for PROFIBUS-DP applications at 24 V
  • Supports data transmission up to 12 Mbps
  • Features integrated PG connector socket and activatable terminating resistor
  • 90° cable outlet with shieldable plastic housing
  • Equipped with IDC quick connection for 9-pin cables
  • Compatible with cable diameters ranging from 6.0 to 8.0 mm
  • UL approved


Product

Manufacturer Material ID -
6ES7972-0BB52-0XA0-IP20FC-PG
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85366990990
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Ambient temperature -
-25 Degrees celsius
Degree of protection (IP), mounted -
IP20
Diameter connector -
8 Millimetre
Housing material -
Plastic
Material of contact surface -
Gold
Pollution degree -
1
Rated current In -
2 Ampere
Rated voltage -
24 Volt
Type of electric connection -
Insulation displacement connection
Type of housing -
Angled
Turck Banner
