6GK14112AB10

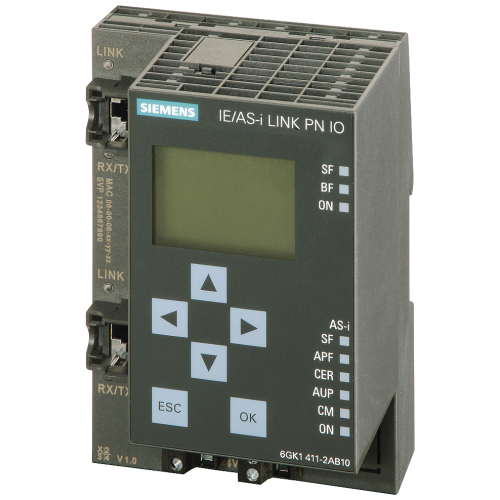

IE/Asi Advanced Single Master V3.0

Manufacturer's No: 6GK1411-2AB10     Manufacturer: Siemens
IE/Asi Advanced Single Master V3.0

Availability On Request

POA

This product has been superseded by

3RK71376SA000BC1

Please check compatibility before purchasing.

  • SIMATIC NET IE/AS-i Link PN IO Gateway
  • Master profile: M3, M4
  • AS-i specification V3.0
  • Integration in PROFINET IO
  • Single master with display
  • IP20 protection rating


Product

Manufacturer Material ID -
6GK1411-2AB10
Net Weight -
0.54kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Transmission rate -
167 kiloBit/second
Explosion safety category for gas -
None
Number of interfaces PROFINET -
2
Performance level acc. EN ISO 13849-1 -
None
Type of data transmission -
Other
SIL according to IEC 61508 -
None
Depth -
88.5 Millimetre
Explosion safety category for dust -
None
Height -
132 Millimetre
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Supporting protocol for ASI -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Width -
90 Millimetre
With potential separation -

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RK71376SA000BC1

Please check compatibility before purchasing.
