6GK14152BA10

DP/Asi Advanced Single Master V3.0

Manufacturer's No: 6GK1415-2BA10     Manufacturer: Siemens

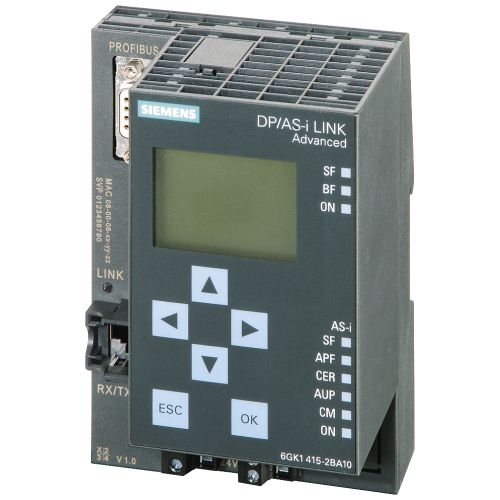

DP/Asi Advanced Single Master V3.0

Availability On Request

POA

This product has been superseded by

3RK71376SA000BC1

Please check compatibility before purchasing.

  • SIMATIC NET DP/AS-Interface Link Advanced Gateway
  • Gateway for integrating AS-Interface devices into PROFIBUS DP network
  • Supports master profiles M3 and M4
  • AS-i specification V3.0 compliant
  • Single master unit with display
  • IP20 protection rating


Product

Manufacturer Material ID -
6GK1415-2BA10
Net Weight -
0.54kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Transmission rate -
167 kiloBit/second
Explosion safety category for gas -
None
Number of interfaces PROFINET -
0
Performance level acc. EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Depth -
88.5 Millimetre
Explosion safety category for dust -
None
Height -
132 Millimetre
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Redundancy -
Supporting protocol for ASI -
Supporting protocol for PROFIBUS -
Supporting protocol for TCP/IP -
Type of data transmission -
Other
Width -
90 Millimetre
With potential separation -

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RK71376SA000BC1

Please check compatibility before purchasing.

Additional Information
