6GK51011BC002AA3

X101-1LD RJ45 to ST/BFOC (Long distance, singlemode, max. 26 km) - 1 x RJ45 ports, 1 x ST/BFOC

Manufacturer's No: 6GK5101-1BC00-2AA3     Manufacturer: Siemens
X101-1LD RJ45 to ST/BFOC (Long distance, singlemode, max. 26 km) - 1 x RJ45 ports, 1 x ST/BFOC

View 3D

Availability Back Order

POA

This product has been superseded by

6GK51021GS002AC2

Please check compatibility before purchasing.

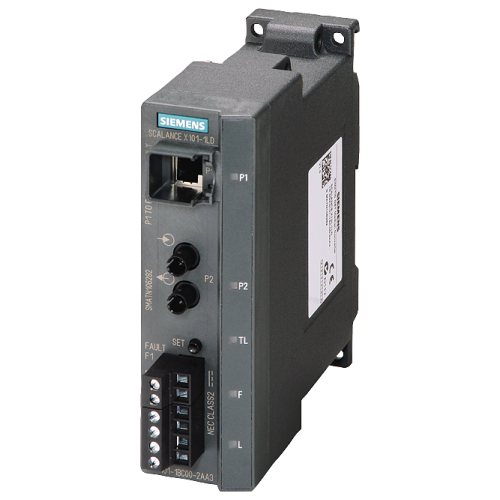

  • Media converter model: SCALANCE X101-1LD
  • Interface: 1 x RJ45 port, 1 x ST/BFOC port
  • Data transfer rate: 1 x 10/100 Mbit/s RJ45 port, 1 x 100 Mbit/s single-mode BFOC port
  • Maximum transmission distance: 26 km
  • Features LED diagnostics and error signaling contact with set button
  • Redundant power supply
  • PROFINET-compliant securing collars included
  • Manual available for download

Follow-up article



Product

Manufacturer Material ID -
6GK5101-1BC00-2AA3
Net Weight -
0.80kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99I
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Number of ports 10/100/1000 Mbps RJ45 -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Construction type -
Single device
Depth -
124 Millimetre
Fast Ethernet -
Height -
125 Millimetre
Number of ports 10 Gbps LC (LX) -
0
Number of ports 10 Gbps LC (SX) -
0
Number of ports 10 Gbps SC (LX) -
0
Number of ports 10 Gbps SC (SX) -
0
Number of ports 10 Mbps AUI -
0
Number of ports 10 Mbps BNC -
0
Number of ports 10 Mbps MTRJ -
0
Number of ports 10 Mbps of SC -
0
Number of ports 10 Mbps of ST -
0
Number of ports 10 Mbps RJ45 -
0
Number of ports 10 Mbps VF-45 -
0
Number of ports 10/100 Mbps RJ45 -
1
Number of ports 100 Mbps RJ45 -
0
Number of ports 100 Mbps SC -
0
Number of ports 100 Mbps ST -
1
Number of ports 100 Mbps VF-45 -
0
Number of ports 1000 Mbps LC (LX) -
0
Number of ports 1000 Mbps LC (SX) -
0
Number of ports 1000 Mbps RJ45 -
0
Number of ports 1000 Mbps SC (LX) -
0
Number of ports 1000 Mbps SC (SX) -
0
Number of ports GIBC (LX) -
0
Number of ports GIBC (SX) -
0
Number of ports Mini-GBIC (LX) -
0
Number of ports Mini-GBIC (SX) -
0
Rail mounting possible -
Supply voltage DC -
18 Volt
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
40 Millimetre

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

6GK51021GS002AC2

Please check compatibility before purchasing.
