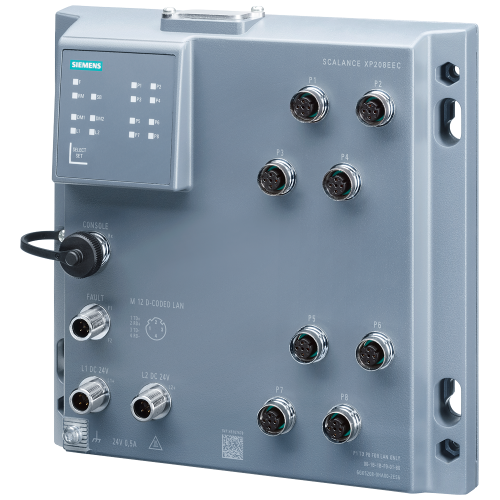

6GK52080HA002ES6

SCALANCE XP208EEC, managed IE switch with railway approval IEC 62443-4-2 certified (EN 50155, EN 45545) 8x 10/100 Mbps M12 ports,

Manufacturer's No: 6GK5208-0HA00-2ES6     Manufacturer: Siemens
SCALANCE XP208EEC, managed IE switch with railway approval IEC 62443-4-2 certified (EN 50155, EN 45545) 8x 10/100 Mbps M12 ports, IP65, LED diagnost

Availability On Request

£1,295.00

This product has been superseded by

6GK52080HA102ES6

Please check compatibility before purchasing.

  • SCALANCE XP208EEC managed IE switch
  • Railway approved with IEC 62443-4-2 certification (EN 50155, EN 45545)
  • 8x 10/100 Mbit/s M12 ports
  • IP65 rated with LED diagnostics
  • Error signaling contact and redundant power supply
  • PROFINET IO device with network management capabilities
  • Supports operation in a redundant ring configuration
  • Includes dust caps and electronic manual on CD-ROM
  • Optional C-plug available

Accessories

Follow-up article



Product

Manufacturer Material ID -
6GK5208-0HA00-2ES6
Net Weight -
0.66kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: 5D002A2H / ECCN: 5D002ENCA3
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Number of ports 100 Mbps SC -
-
Number of ports 1000 Mbps RJ45 -
-
Number of ports 100 Mbps ST -
-
Number of ports 10/100 Mbps RJ45 -
-
Number of ports 1000 Mbps SC (SX) -
-
Number of ports 1000 Mbps SC (LX) -
-
Number of module slots -
-
Number of ports 10/100 Mbps M12 -
-
Number of ports 10/100/1000 Mbps RJ45 -
-
Number of ports 1000 Mbps GBIC -
-
Number of ports 1000 Mbps Mini GBIC -
-
Number of combination-ports RJ45/Mini GBIC -
-
Number of other ports -
-
Number of ports 100/1000 Mbps Mini GBIC -
-
Power over Ethernet -
UN
Number of ports PoE -
-
Max. PoE power -
- Watt
Number of ports 1000 Mbps POF -
-
Number of max. stackable switches -
0
Degree of protection (IP) -
IP65
Mounting method -
Surface mounted
Number of maximum stackable switches -
0
Number of ports 10 Gbps Mini GBIC -
0
Number of ports 100 Mbps POF -
0
Number of ports 10 Gbps RJ45 -
0
Number of ports 40 Gbps Mini GBIC -
0
Number of ports 100 Gbps Mini GBIC -
0
Degree of protection (IP rating) -
IP65
Depth -
49 Millimetre
Height -
200 Millimetre
Manageable -
Width -
200 Millimetre

Availability On Request

£1,295.00
Sign in or Register for customer prices.

This product has been superseded by

6GK52080HA102ES6

Please check compatibility before purchasing.
