6GK53201BD002AA3

X320-1FE Fast Ethernet, multimode, max. 5 km - 20 x RJ45 ports, 3x SC (Dependent on the media module used)

Manufacturer's No: 6GK5320-1BD00-2AA3     Manufacturer: Siemens
X320-1FE Fast Ethernet, multimode, max. 5 km - 20 x RJ45 ports, 3x SC (Dependent on the media module used)

View 3D

Availability Back Order

£3,659.00

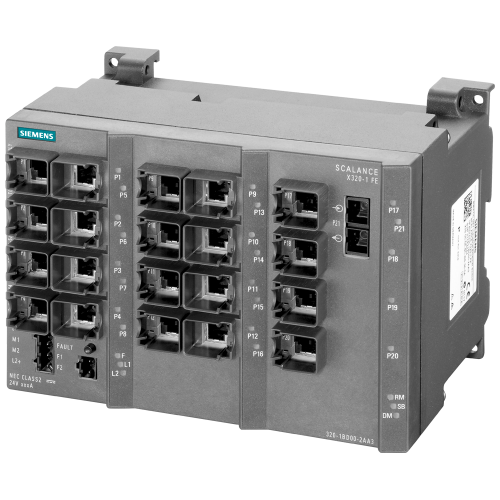

  • SCALANCE X320-1FE managed IE switch
  • 20 x 10/100 Mbit/s RJ45 ports
  • 1 x 100 Mbit/s SC Port multimode
  • LED diagnostics
  • Error-signaling contact with Select/set pushbutton
  • PROFINET IO Device
  • Network management
  • Integrated redundancy manager
  • Office features: RSTP, VLAN, IGMP
  • C-plug included in scope of delivery

Accessories



Product

Manufacturer Material ID -
6GK5320-1BD00-2AA3
Net Weight -
1.97kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: 5D002A2H / ECCN: 5D002ENCA3
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

Number of ports 100 Mbps ST -
-
Power over Ethernet -
UN
Number of ports PoE -
-
Max. PoE power -
- Watt
Number of ports 1000 Mbps POF -
-
Number of max. stackable switches -
0
Degree of protection (IP) -
IP30
Mounting method -
DIN rail (top hat rail)
Number of ports 1000 Mbps RJ45 -
0
Ethernet -
Number of ports 10/100 Mbps RJ45 -
20
Number of ports 1000 Mbps SC (SX) -
1
Number of ports 1000 Mbps SC (LX) -
0
Number of module slots -
0
Number of maximum stackable switches -
0
Number of ports 10/100 Mbps M12 -
0
Number of ports 10/100/1000 Mbps RJ45 -
0
Number of ports 1000 Mbps GBIC -
0
Number of ports 1000 Mbps Mini GBIC -
0
Number of combination-ports RJ45/Mini GBIC -
0
Layer 2 -
Number of other ports -
0
Number of ports 100/1000 Mbps Mini GBIC -
0
Number of ports 10 Gbps Mini GBIC -
0
Number of ports 100 Mbps POF -
0
Number of ports 10 Gbps RJ45 -
0
Number of ports 40 Gbps Mini GBIC -
0
Number of ports 100 Gbps Mini GBIC -
0
Degree of protection (IP rating) -
IP30
Depth -
123 Millimetre
Height -
125 Millimetre
Manageable -
Number of ports 100 Mbps SC -
1
Width -
180 Millimetre

Availability Back Order

£3,659.00
