6GK75421AX000XE0

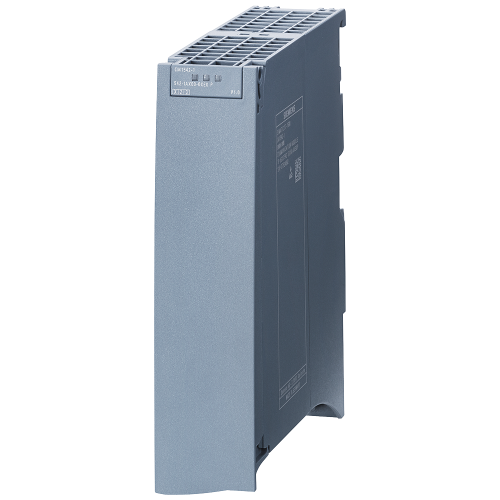

Communication module CM 1542-1, connection S7-1500 to IE

Manufacturer's No: 6GK7542-1AX00-0XE0     Manufacturer: Siemens
Communication module CM 1542-1, connection S7-1500 to IE

Availability Available to order

POA

This product has been superseded by

6GK75421AX100XE0

Please check compatibility before purchasing.

  • Communication module CM 1542-1
  • Connects S7-1500 to PROFINET as IO controller
  • Supports TCP/IP, ISO-on-TCP, UDP, S7 communication
  • IP broadcast Multicast, SNMPV1
  • Time-of-day synchronization via NTP
  • 2x RJ45 (10/100 Mbit)

Accessories

Follow-up article



Product

Manufacturer Material ID -
6GK7542-1AX00-0XE0
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
-
Siemens
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
1
Performance level acc. EN ISO 13849-1 -
None
Transmission rate -
100000000 kiloBit/second
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None

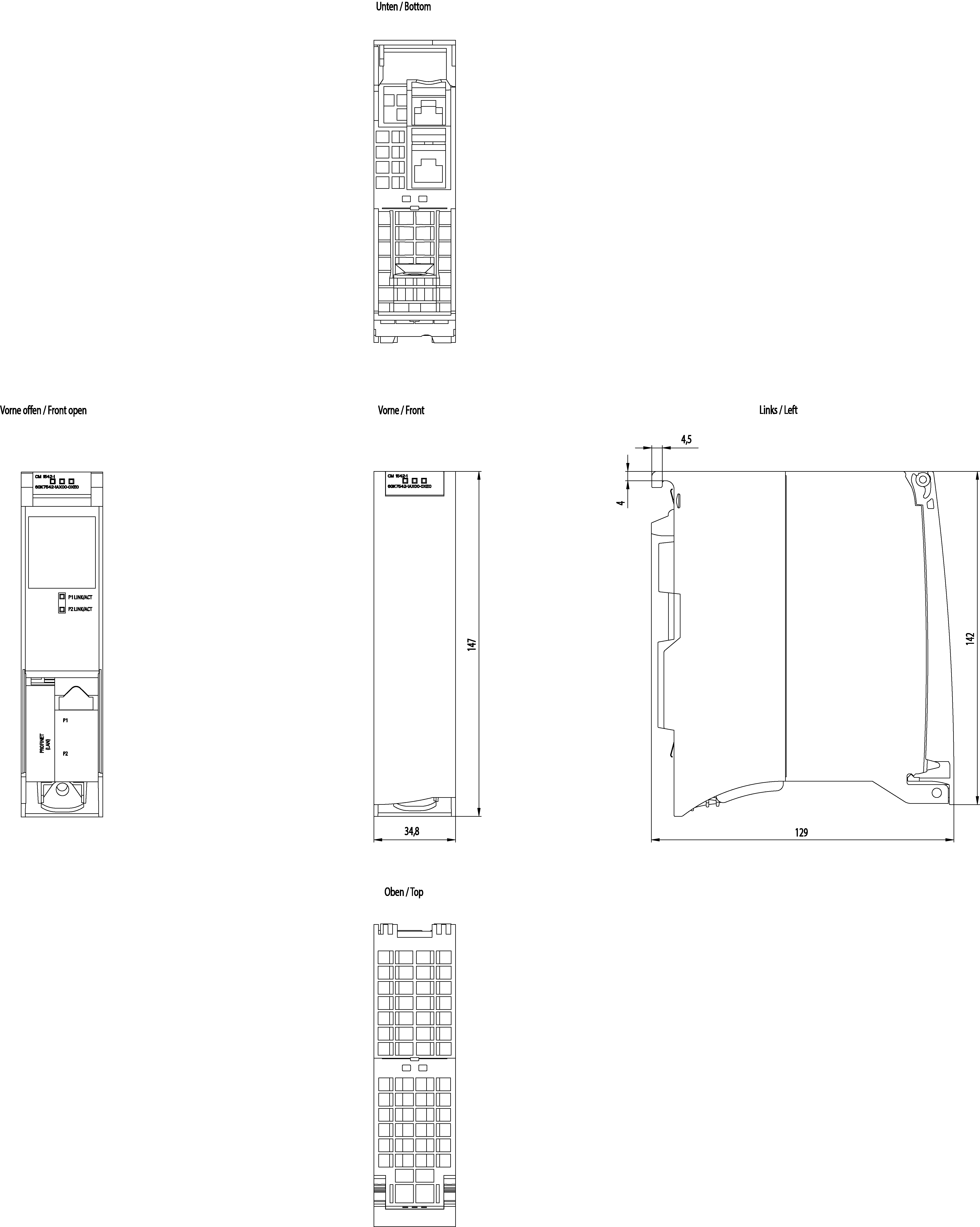

Depth -
129 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
142 Millimetre
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Redundancy -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
Type of data transmission -
Other
Width -
35 Millimetre
Commodity Code -
85176200
last_sent_to_siemens_at -
2026-08-03 17:08:11

Availability Available to order

POA
Sign in or Register for customer prices.

This product has been superseded by

6GK75421AX100XE0

Please check compatibility before purchasing.
