6GT28316AA50

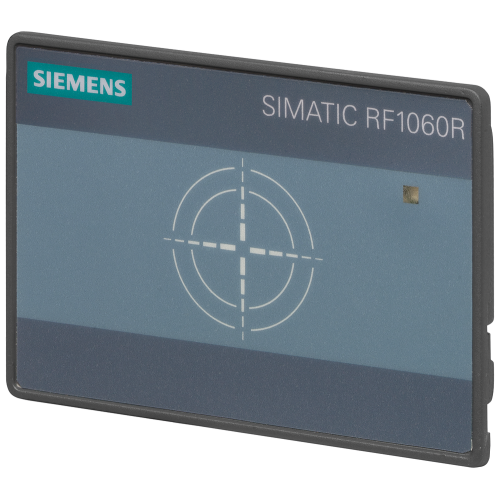

SIMATIC RF1000 Access control reader RF1060R ISO 14443 A/B Mifare, ISO15693 USB port IP 65 front, -25 to +55 °C 90 x 62 x 25 m

Manufacturer's No: 6GT2831-6AA50     Manufacturer: Siemens
SIMATIC RF1000 Access control reader RF1060R ISO 14443 A/B Mifare, ISO15693 USB port IP 65 front, -25 to +55 °C 90 x 62 x 25 mm LxWxH with integra

Availability Available to order

POA

This product has been superseded by

6GT28316AA60

Please check compatibility before purchasing.

  • Access control reader model: SIMATIC RF1000 RF1060R
  • RFID compatibility: ISO 14443 A/B Mifare, ISO15693
  • Connectivity: USB port
  • Protection rating: IP 65 for front
  • Operating temperature: -25 to +55 °C
  • Dimensions: 90 x 62 x 25 mm (L x W x H)
  • Discontinued product since: 26/03/24
  • Successor model: 6GT2831-6AA60

Accessories

Follow-up article



Product

Manufacturer Material ID -
6GT2831-6AA50
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
84718000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
-
Siemens
Diameter -
- Millimetre
Number of digital inputs -
-
Number of digital outputs -
-
Material housing -
Plastic
Degree of protection (IP) -
Other
Radio protocol -
ISO 15693
Type of electric connection -
Plug-in connection
Max. transmission rate, reading -
424000 kiloBit/second
Max. transmission rate, writing -
424000 kiloBit/second
Degree of protection (IP rating) -
IP65
Depth -
23.5 Millimetre
Frequency -
13.56 Megahertz
Height -
62 Millimetre
Housing material -
Plastic
Max. transmission range -
30 Millimetre
Type of voltage (input voltage) -
DC
Width -
90 Millimetre
Commodity Code -
84718000 Millimetre

Availability Available to order

POA
Sign in or Register for customer prices.

This product has been superseded by

6GT28316AA60

Please check compatibility before purchasing.
