6NH77015AN

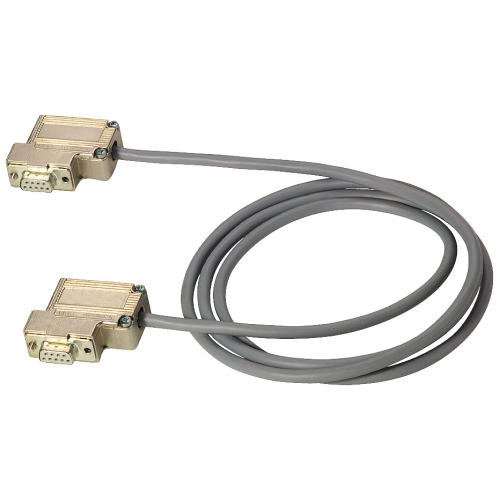

TIM Cable - TIM with the MD720-3 (RS232) connection cable, 2.5 m

Manufacturer's No: 6NH7701-5AN     Manufacturer: Siemens
TIM Cable - TIM with the MD720-3 (RS232) connection cable, 2.5 m

Availability Back Order

POA
  • TIM Cable with MD720-3 (RS232) connection
  • Cable length: 2.5 meters
  • Compatible with SINAUT ST7
  • Plug-in cable for connecting TIM with GSM modems like MC45T or MD720-3
  • Suitable for third-party modems or wireless devices with standard RS232 interface


Product

Manufacturer Material ID -
6NH7701-5AN
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85444210
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
26121609

Technical Specification

-
Siemens
AWG-size -
-
Anti-kink sleeve -
UN
Type of connector connection 1 -
UN
Type of connector connection 2 -
UN
Cable construction -
UN
Colour anti-kink sleeve -
UN
Case connector connection 1 -
UN
Case connector connection 2 -
UN
Material connector of connector housing connection 1 -
UN
Material connector of connector housing connection 2 -
UN
NVP value -
- Percentage
Cable type -
S/UTP
Flame retardant -
No
Pin assignment -
1:1
Length -
2.5 Metre
Colour outer sheath -
Grey
Degree of protection (IP) -
Other
Category -
Other
Conductor Diameter -
0.14 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Min. permitted bending radius, moving application with forced guidance -
61 Millimetre
Min. permitted bending radius, moving application/free movement -
61 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
61 Millimetre
Number of cores -
10
Outer diameter approx. -
6.1 Millimetre
Overall screen type -
Braiding
Permitted cable outer temperature after assembling without vibration -
-5 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-5 Degrees celsius
Sheath colour -
Grey
