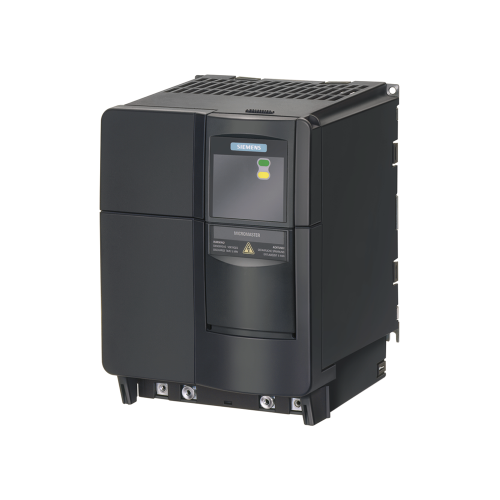

6SE64202AD255CA1

MICROMASTER 420 WITH BUILT IN CLASS A FILTER 3AC 380-480V +10/-10% 47-63HZ CONSTANT TORQUE POWER 5.5

Manufacturer's No: 6SE6420-2AD25-5CA1     Manufacturer: Siemens
MICROMASTER 420 WITH BUILT IN CLASS A FILTER 3AC 380-480V +10/-10% 47-63HZ CONSTANT TORQUE POWER 5.5

Availability Back Order

POA
  • Model: Micromaster 420
  • Input Voltage: 3AC 380-480V +/-10%, 47-63Hz
  • Power Output: 5.5 kW
  • Overload Capacity: 150% for 60s
  • Dimensions: 245mm x 185mm x 195mm (H x W x D)
  • Protection: IP20
  • Ambient Temperature: -10 to +50°C
  • Built-in Class A filter
  • Torque: Constant torque and variable torque
  • Does not include AOP/BOP


Product

Manufacturer Material ID -
6SE6420-2AD25-5CA1
Net Weight -
5.51kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
GB
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32121705

Technical Specification

Number of digital outputs -
-
Mains frequency -
UN
Max. output at quadratic load at rated output voltage -
- Kilowatt
Degree of protection (NEMA) -
UN
Width -
185 Millimetre
Height -
245 Millimetre
Depth -
195 Millimetre
Number of digital inputs -
3
Number of analogue inputs -
1
Number of analogue outputs -
1
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for PROFIBUS -
Supporting protocol for CAN -
Supporting protocol for DeviceNet -
Supporting protocol for other bus systems -
Degree of protection (IP) -
IP20
With PC connection -
Mains voltage -
380 Volt
Number of interfaces PROFINET -
0
Type of converter -
U converter
Number of phases output -
3
Number of phases input -
3
Application in industrial area permitted -
Max. output frequency -
650 Hertz
Max. output at linear load at rated output voltage -
5.5 Kilowatt
Relative symmetric net voltage tolerance -
10 Percentage
Relative symmetric net frequency tolerance -
10 Percentage
Max. output voltage -
480 Volt
Nominal output current I2N -
13.2 Ampere
