6SL31202TE210AD0

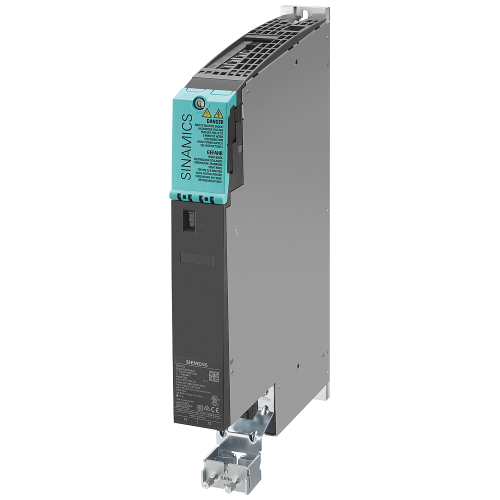

SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3-PH 400V, 9A/9A FRAME SIZE: BOOKSIZE D-TYP

Manufacturer's No: 6SL3120-2TE21-0AD0     Manufacturer: Siemens
SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3-PH 400V, 9A/9A FRAME SIZE: BOOKSIZE D-TYP

Availability Back Order

£1,820.90
  • Input Voltage: DC 600V
  • Output Voltage: 3-phase 400V
  • Output Current: 9A per phase
  • Frame Size: Booksize D-type
  • Cooling: Internal air cooling
  • Optimized pulse sample
  • Support for extended safety integrated functions
  • Includes DRIVE-CLiQ cable


Product

Manufacturer Material ID -
6SL3120-2TE21-0AD0
Net Weight -
5.36kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
3A999A / N
Minimum Order Quantity -
1
UNSPSC -
32121705

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Degree of protection (IP) -
UN
Mains voltage -
- Volt
Mains frequency -
UN
Number of interfaces PROFINET -
-
Type of converter -
UN
Number of phases output -
UN
Number of phases input -
UN
Max. output at quadratic load at rated output voltage -
- Kilowatt
Relative symmetric net voltage tolerance -
- Percentage
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN
Depth -
270 Millimetre
Height -
380 Millimetre
Max. output at linear load at rated output voltage -
4.1 Kilowatt
Max. output frequency -
600 Hertz
Width -
50 Millimetre

Availability Back Order

£1,820.90
