6XV18732B

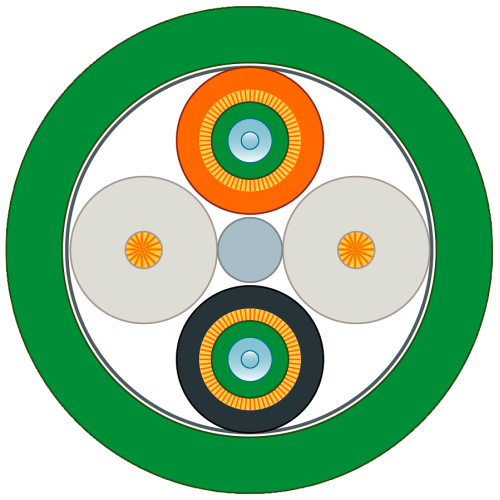

FO FRNC cable 50/125/1400 (OM 2), segment., MM, halogen-free, UL, by the meter

Manufacturer's No: 6XV1873-2B     Manufacturer: Siemens
FO FRNC cable 50/125/1400 (OM 2), segment., MM, halogen-free, UL, by the meter

Availability Available to order

£6.00
  • Fiber optic FRNC cable (50/125/OM2)
  • Halogen-free and splittable
  • Suitable for permanent routing
  • Maximum length: 1000 meters
  • Minimum order quantity: 20 meters
  • Sold by the meter


Product

Manufacturer Material ID -
6XV1873-2B
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85447000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
20
RoHs Compliance -
yes
UNSPSC -
26121609

Technical Specification

-
Siemens
Circuit integrity -
UN
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Colour outer sheath -
Green
Material outer sheath -
Other
Low smoke (acc. EN 61034-2) -
Reaction-to-fire class according to EN 13501-6 -
Eca
Specification material outer sheath -
Other
Fibre type -
Multi mode 50/125
Flame retardant -
In accordance with IEC/EN 60332-1-2
With strain relief -
Category -
OM2
Sheath material -
Other
Type of tube -
Loose tube
Number of fibres per tube -
1
Cable metal free -
Outer diameter approx. -
9.2 Millimetre
Low smoke (acc. BS EN 61034-2) -
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath material specification -
Other
Min. permitted bending radius, stationary application/permanent installation -
135 Millimetre
Number of fibres -
2
Sheath colour -
Green

Availability Available to order

£6.00
