6AG10554MH082BA1

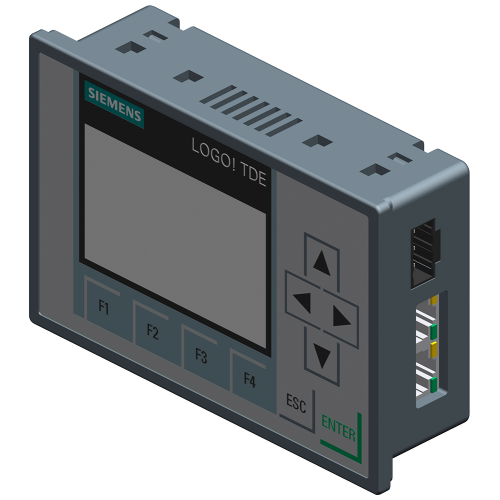

SIPLUS LOGO! TDE

Manufacturer's No: 6AG1055-4MH08-2BA1     Manufacturer: Siemens
SIPLUS LOGO! TDE

Availability Back Order

£406.00
  • SIPLUS LOGO! TDE based on 6ED1055-4MH08-0BA1
  • Conformal coating for protection
  • Operating temperature range: -25°C to +60°C, start up at -20°C
  • 6-line display with 3 background colors
  • 2 Ethernet ports
  • Includes installation accessories for LOGO! 8
Product video
Product video
Product video
Product video
Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6AG1055-4MH08-2BA1
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
32151705

Technical Specification

Type of display -
LCD with background illumination
Degree of protection (IP), front side -
IP65
Height of the front -
86 Millimetre
Number of buttons with LED -
0
Number of display characters per line -
20
Number of display lines -
6
Number of function buttons, programmable -
4
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of online languages -
2
Number of password levels -
1
Number of system buttons -
6
Operating temperature -
-25 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
38.7 Millimetre
Supply voltage AC 50 Hz -
20.4 Volt
Supply voltage AC 60 Hz -
20.4 Volt
Supply voltage DC -
10.2 Volt
Supporting protocol for TCP/IP -
Useful project memory/user memory -
0 kiloByte (1000 Byte)
Voltage type of supply voltage -
AC/DC
Width of the front -
128.2 Millimetre
With message indication -

Availability Back Order

£406.00
