6AG11346GD017BA1

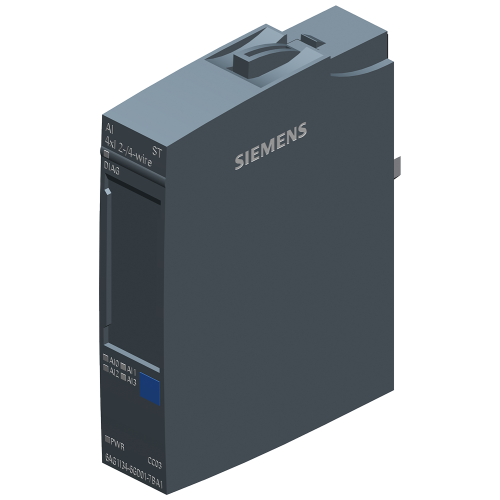

SIPLUS ET 200SP analog input module, AI 4XI 2-/4-wire Standard, -40...+70 °C with conformal coating

Manufacturer's No: 6AG1134-6GD01-7BA1     Manufacturer: Siemens
SIPLUS ET 200SP analog input module, AI 4XI 2-/4-wire Standard, -40...+70 °C with conformal coating

Availability On Request

£355.00
  • SIPLUS ET 200SP AI 4xI 2-/4-wire analog input module
  • Model: 6ES7134-6GD01-0BA1
  • Conformal coating for harsh environments
  • Operating temperature: -40 to +70°C
  • Suitable for BU type A0, A1
  • Color code: CC03
  • Module diagnostics for easy troubleshooting
  • 16-bit resolution with accuracy of +/-0.3%

Mandatory additional product

Product video
Product video


Product

Manufacturer Material ID -
6AG1134-6GD01-7BA1
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Resolution of the analogue outputs -
- Bit
Degree of protection (IP) -
UN
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Front build in possible -
Type of electric connection -
Plug-in connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Analogue inputs configurable -
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
73 Millimetre
Input signal, configurable -
Input, current -
Number of analogue inputs -
4
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rack-assembly possible -
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
Supply voltage DC -
19.2 Volt
System accessory -
Voltage type of supply voltage -
DC
Width -
15 Millimetre

Availability On Request

£355.00
