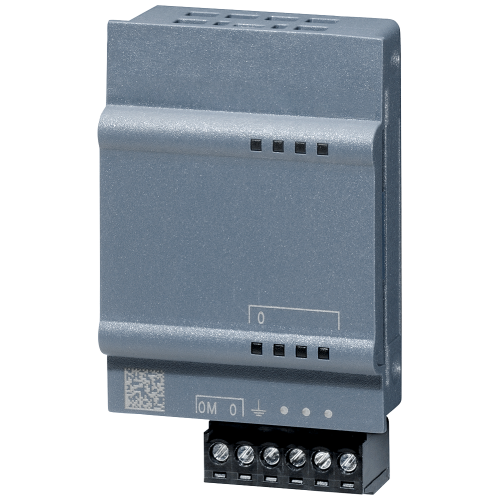

6AG12324HA305XB0

SIPLUS S7-1200 SB1232 1AO -40...+60 °C Start-up -25 °C with conformal coating based on 6ES7232-4HA

Manufacturer's No: 6AG1232-4HA30-5XB0     Manufacturer: Siemens
SIPLUS S7-1200 SB1232 1AO -40...+60 °C Start-up -25 °C with conformal coating based on 6ES7232-4HA

View 3D

Availability Back Order

£217.00
  • Model: SIPLUS S7-1200 SB 1232 1AQ
  • Based on: 6ES7232-4HA30-0XB0
  • Conformal coating for protection
  • Temperature range: -40°C to +60°C (start up at -25°C)
  • Analog output: 1 AQ
  • Voltage output: +/-10 V DC (12-bit resolution)
  • Current output: 0-20 mA (11-bit resolution)


Product

Manufacturer Material ID -
6AG1232-4HA30-5XB0
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Resolution of the analogue inputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Analogue inputs configurable -
Analogue outputs configurable -
Depth -
21 Millimetre
Explosion safety category for dust -
None
Height -
62 Millimetre
Input signal, configurable -
Number of analogue inputs -
0
Number of analogue outputs -
1
Output signal configurable -
Output, current -
Output, voltage -
Resolution of the analogue outputs -
12 Bit
Width -
38 Millimetre
