6AG12344HE322XB0

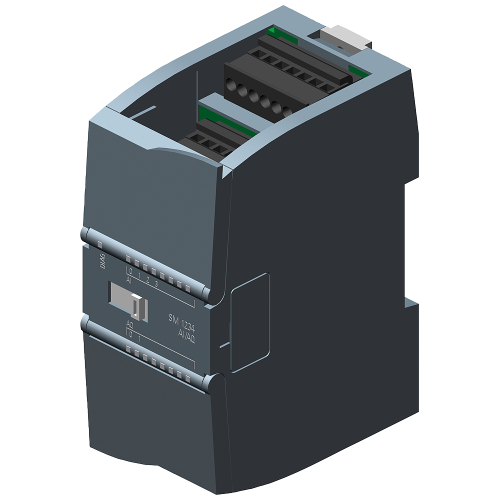

SIPLUS S7-1200 SM 1234 4AI/2AQ -25...+70 °C with conformal coating based on 6ES7234-4HE32-0XB0 . an

Manufacturer's No: 6AG1234-4HE32-2XB0     Manufacturer: Siemens
SIPLUS S7-1200 SM 1234 4AI/2AQ -25...+70 °C with conformal coating based on 6ES7234-4HE32-0XB0 . an

Availability On Request

£856.00
  • Model: SIPLUS S7-1200 SM 1234
  • Analog Inputs: 4 channels
  • Analog Outputs: 2 channels
  • Temperature Range: -40°C to +70°C
  • Start-up Temperature: -25°C
  • Analog Input Range: +/-10 V
  • Analog Input Resolution: 14-bit
  • Analog Output Range: 0-20 mA
  • Analog Output Resolution: 13-bit


Product

Manufacturer Material ID -
6AG1234-4HE32-2XB0
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Explosion safety category for gas -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Type of electric connection -
Screw-/spring clamp connection
Analogue inputs configurable -
Analogue outputs configurable -
Depth -
75 Millimetre
Explosion safety category for dust -
None
Height -
100 Millimetre
Input signal, configurable -
Input, current -
Input, voltage -
Number of analogue inputs -
4
Number of analogue outputs -
2
Output signal configurable -
Output, current -
Output, voltage -
Resolution of the analogue inputs -
12 Bit
Resolution of the analogue outputs -
14 Bit
Width -
45 Millimetre

Availability On Request

£856.00
