6AG13311KF027AB0

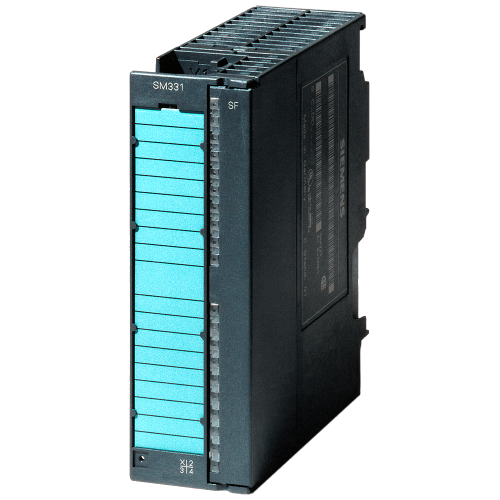

SIPLUS S7-300 SM331 8AE -25 ... +70 DEGREES C WITH CONFORMAL COATING BASED ON 6ES7331-1KF02-0AB0 . O

Manufacturer's No: 6AG1331-1KF02-7AB0     Manufacturer: Siemens
SIPLUS S7-300 SM331 8AE -25 ... +70 DEGREES C WITH CONFORMAL COATING BASED ON 6ES7331-1KF02-0AB0 . O

View 3D

Availability Back Order

£1,048.00
  • SIPLUS S7-300 SM 331 8AI module
  • Model: 6ES7331-1KF02-0AB0
  • Conformal coating for protection
  • Temperature range: -25°C to +70°C
  • Isolated 8 analog inputs
  • Resolution: 13-bit for voltage, current, resistance, Pt100, NI100, NI1000, LG-NI1000, PTC, KTY
  • Conversion time: 66 ms
  • 1x 40-pole connector

Accessories



Product

Manufacturer Material ID -
6AG1331-1KF02-7AB0
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Resolution of the analogue outputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Analogue inputs configurable -
Depth -
117 Millimetre
Height -
125 Millimetre
Input signal, configurable -
Input, current -
Input, resistance thermometer -
Input, resistor -
Input, voltage -
Number of analogue inputs -
8
Number of analogue outputs -
0
Resolution of the analogue inputs -
13 Bit
Width -
40 Millimetre
