6AG13336SB007AY0

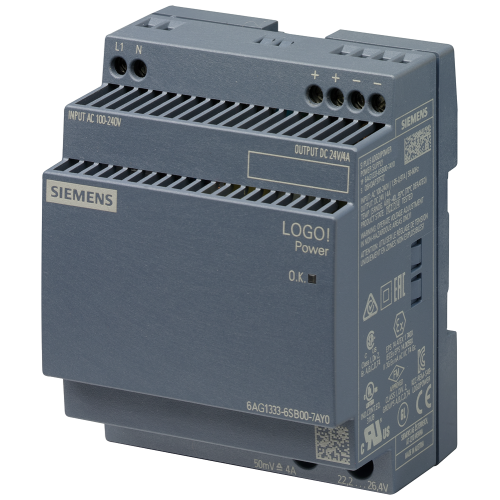

Power supply SIPLUS LOGO!Power, single-phase 24 V DC/4 A

Manufacturer's No: 6AG1333-6SB00-7AY0     Manufacturer: Siemens
Power supply SIPLUS LOGO!Power, single-phase 24 V DC/4 A

View 3D

Availability Back Order

£341.00
  • SIPLUS LOGO! power 24 V 4 A
  • Model: 6EP3333-6SB00-0AY0
  • Conformal coating for protection
  • Operating temperature: -40°C to +70°C
  • Start-up temperature: -25°C
  • Input voltage: 100-240 V AC
  • Output voltage: 24 V DC
  • Output current: 4 A


Product

Manufacturer Material ID -
6AG1333-6SB00-7AY0
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
RO
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
130 Millimetre
Built-in width -
72 Millimetre
Degree of protection (IP) -
IP20
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
53 Millimetre
Direct mounting possible -
Height -
90 Millimetre
Max. output current 1 -
4 Ampere
Modular version -
Nominal value output current 1 -
4 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
96 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
240 Volt
Rated supply voltage at AC 60 Hz -
100 Volt
Recess height -
130 Millimetre
Recess width -
72 Millimetre
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC/DC
Wall mounting possible -
Width -
72 Millimetre

Availability Back Order

£341.00
