6AG21240GC131AX0

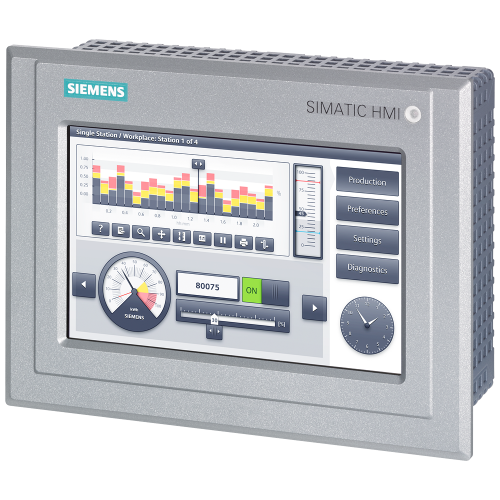

SIPLUS HMI TP700 OUTDOOR RAIL -25°C...60°C T1 with 70°C for 10 min with conformal coa

Manufacturer's No: 6AG2124-0GC13-1AX0     Manufacturer: Siemens
SIPLUS HMI TP700 OUTDOOR RAIL -25°C...60°C T1 with 70°C for 10 min with conformal coating Based o

Availability On Request

£4,110.00
  • SIPLUS HMI TP700 outdoor rail based on 6AV2124-0GC13-0AX0
  • Conformal coating for protection
  • Operating temperature: -30°C to +60°C, with temporary exposure up to +70°C for 10 minutes
  • 7" widescreen TFT display with 16 million colors
  • PROFINET interface, MPI/PROFIBUS DP interface
  • 12 MB configuration memory
  • Windows CE 6.0 operating system
  • Configurable with WinCC Comfort V13 SP1 and higher
  • HSP (Highway Addressable Remote Transducer) support

Accessories



Product

Manufacturer Material ID -
6AG2124-0GC13-1AX0
Net Weight -
1.91kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
5D992 / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA), front side -
UN
Built-in depth -
67 Millimetre
Operation temperature -
-30 Degrees celsius
With printer output -
Number of interfaces PROFINET -
2
Type of display -
TFT
Additional software components, loadable -
Degree of protection (IP), front side -
IP66
Height of the front -
158 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
16777216
Number of function buttons, programmable -
0
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of password levels -
50
Number of pixels, horizontal -
800
Number of pixels, vertical -
480
Number of system buttons -
0
Operating temperature -
-30 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
67 Millimetre
Screen diagonal -
7 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Touch technology -
Resistive touch
Useful project memory/user memory -
12000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
214 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability On Request

£4,110.00
