6AV66470AA113AX1

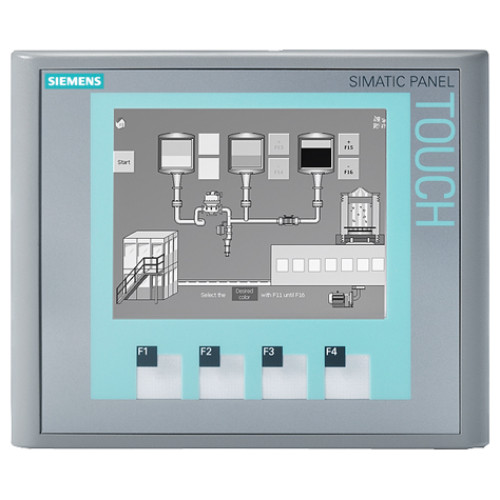

SIMATIC HMI KTP400 Basic mono PN

Manufacturer's No: 6AV6647-0AA11-3AX1     Manufacturer: Siemens
SIMATIC HMI KTP400 Basic mono PN

Availability On Request

POA
SIMATIC HMI KTP400 Basic mono PN, Basic Panel, key/touch operation, 4" STN display, 4 gray levels, PROFINET interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V10.5/ STEP 7 Basic V10.5, contains open-source software, which is provided free of charge see enclosed CD


Product

Manufacturer Material ID -
6AV6647-0AA11-3AX1
Net Weight -
0.49kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43201503

Technical Specification

Degree of protection (IP), front side -
IP65
Height of the front -
116 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
4
Number of function buttons, programmable -
4
Number of grey-scales/blue-scales of display -
4
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of online languages -
5
Number of password levels -
50
Number of pixels, horizontal -
320
Number of pixels, vertical -
240
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
40 Millimetre
Screen diagonal -
3.8 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for TCP/IP -
Touch technology -
Resistive touch
Type of display -
STN
Useful project memory/user memory -
1000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
140 Millimetre
With alpha numeric keyboard -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -
