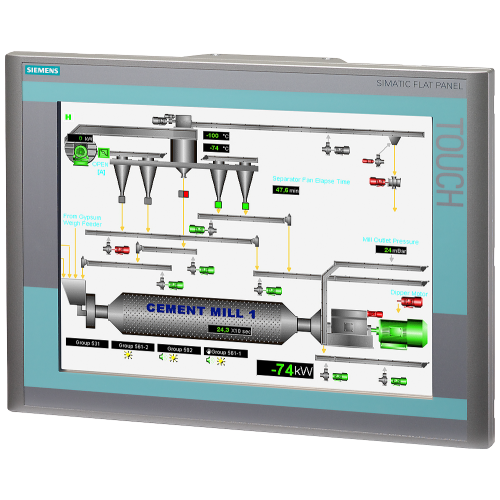

6AV78615TB101BA0

SIMATIC Flat Panel pro 15-inch Touch TFT screen with 1024x 768 pixels resolution for 24 V DC and 120

Manufacturer's No: 6AV7861-5TB10-1BA0     Manufacturer: Siemens
SIMATIC Flat Panel pro 15-inch Touch TFT screen with 1024x 768 pixels resolution for 24 V DC and 120

Availability On Request

POA
  • 15-inch Touch TFT screen
  • Resolution: 1024 x 768 pixels
  • Power supply: 24 V DC and 120/240 V AC
  • Interfaces: VGA, DVI-D
  • Remote placement up to 30 m
  • Enclosure rating: IP65/NEMA4


Product

Manufacturer Material ID -
6AV7861-5TB10-1BA0
Net Weight -
8.82kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Horizontal frequency -
- kiloHertz
Number of grey-scales/blue-scales of display -
-
Built-in depth -
98.5 Millimetre
Operation temperature -
0 Degrees celsius
Degree of protection (IP), front side -
IP65
Frame frequency -
0.06 kiloHertz

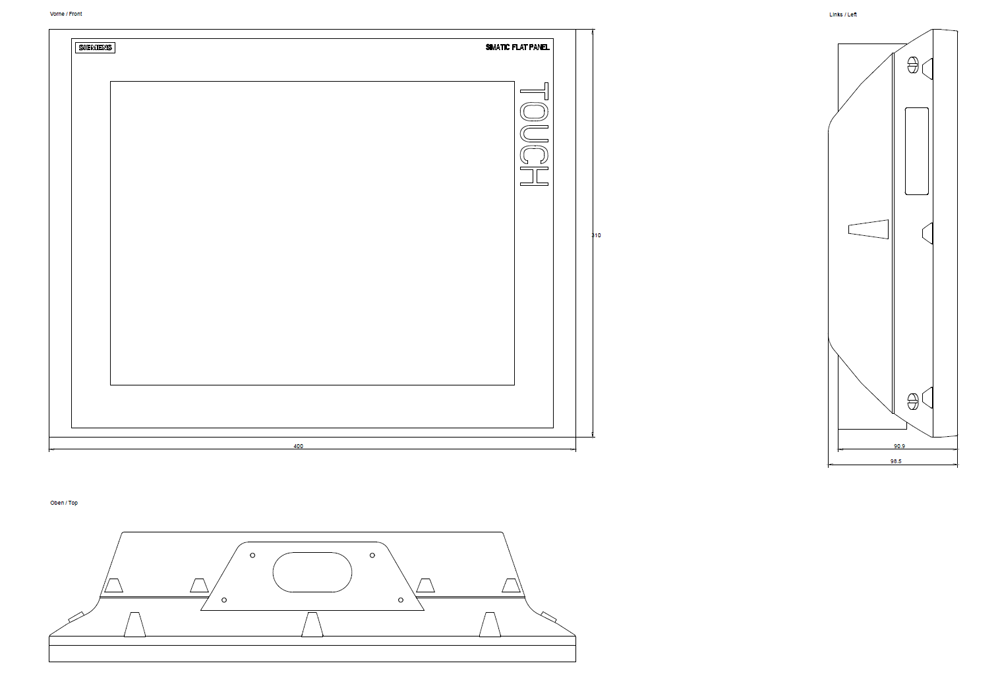

Height of the front -
310 Millimetre
Number of colours of the display -
16000000
Number of function buttons -
0
Number of pixels, horizontal -
1024
Number of pixels, vertical -
768
Operating temperature -
0 Degrees celsius
Recess depth -
98.5 Millimetre
Screen diagonal -
15 inch
Supply voltage AC 50 Hz -
90 Volt
Supply voltage AC 60 Hz -
90 Volt
Supply voltage DC -
19.2 Volt
Type of display -
TFT
Voltage type of supply voltage -
AC/DC
Width of the front -
400 Millimetre
With colour display -
With HW-interface digital video signal -
With HW-interface USB -
With HW-interface video signal, analogue -
With On Screen Display -
With touch screen -

Availability On Request

POA
