6BK19422DA000AA0

SIPLUS HCS4200 POM4220 Highend. Power Output Module (POM) to insert in HCS RACK4200. With 8 power outputs 5540 W at 277V and 9600

Manufacturer's No: 6BK1942-2DA00-0AA0     Manufacturer: Siemens
SIPLUS HCS4200 POM4220 Highend. Power Output Module (POM) to insert in HCS RACK4200. With 8 power outputs 5540 W at 277V and 9600 W at 480V (with control mode half-wave control:depending on the inrush

View 3D

Availability Back Order

POA

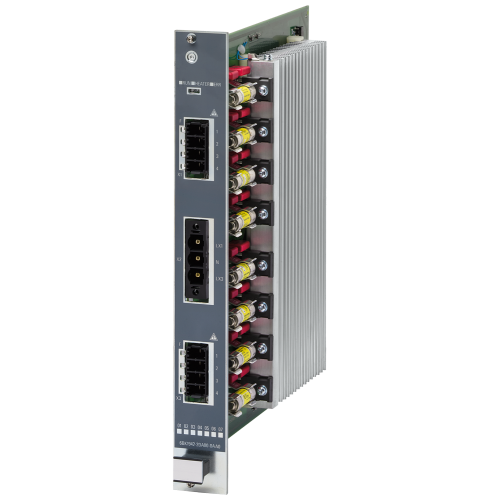

  • SIPLUS HCS4200 POM4220 Highend Power Output Module
  • Designed for HCS RACK4200
  • 8 power outputs: 5540 W at 277V and 9600 W at 480V
  • Control mode: half-wave control
  • Inrush current limitation: 3324 W at 277V, 5760 W at 480V

Mandatory additional product

Accessories

Spare part



Product

Manufacturer Material ID -
6BK1942-2DA00-0AA0
Net Weight -
1.80kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Rated supply voltage at DC -
- Volt
Type of heating emitter control -
UN
Number of outputs for fans -
-
Output voltage for fans -
- Volt
Power carrying capacity for fans per output -
- Kilowatt
Degree of protection (IP) -
IP20
Type of interface -
Other
Type of venting -
Other
Model -
Expansion device
Type of load -
Resistive load
Type of fastening -
Screw mounting
Interface type -
Other
Built-in position -
Vertical
Degree of protection (IP rating) -
IP20
Integrated diagnosis function -
Number of heating emitters per output -
5
Number of outputs for heating emitter -
8
Output current for heating power -
20 Ampere
Output voltage for heating power -
230 Volt
Overload-/temperature protection -
Power capacity for heating power per output -
4.6 Kilowatt
Rated frequency -
47 Hertz
Rated supply voltage at AC -
207 Volt
Rated switching capacity -
64 Ampere
Short-circuit protection, outputs available -
Type of power supply -
External
Voltage type of supply voltage -
AC
With approval according to UL -
