6BK19422FA000AA0

SIPLUS HCS4200 POM4220 FLEXIBLE. POWER OUTPUT MODULE (POM) TO INSERT IN HCS RACK4200. WITH 12 POWER OUTPUTS EACH MAX. 4432 W (WITH

Manufacturer's No: 6BK1942-2FA00-0AA0     Manufacturer: Siemens
SIPLUS HCS4200 POM4220 FLEXIBLE. POWER OUTPUT MODULE (POM) TO INSERT IN HCS RACK4200. WITH 12 POWER OUTPUTS EACH MAX. 4432 W (WITH CONTROL MODE HALF-WAVE CONTROL: DEPENDING ON THE INRUSH CURRENT OF TH

View 3D

Availability Back Order

POA

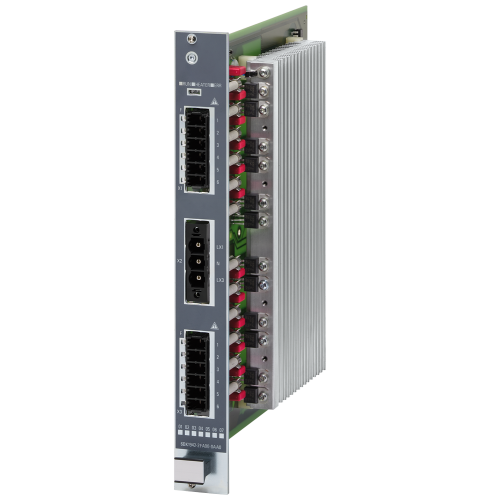

  • SIPLUS HCS4200 POM4220 Flexible Power Output Module
  • Designed to be inserted in HCS RACK4200
  • 12 power outputs, each with a maximum of 4432 W
  • Control mode: Half-wave control
  • Inrush current limitation: Max. 1600 W for electric loads

Mandatory additional product

Accessories

Spare part



Product

Manufacturer Material ID -
6BK1942-2FA00-0AA0
Net Weight -
1.80kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Rated supply voltage at DC -
- Volt
Number of outputs for fans -
-
Output voltage for fans -
- Volt
Power carrying capacity for fans per output -
- Kilowatt
Degree of protection (IP) -
IP20
Type of interface -
Other
Type of venting -
Other
Model -
Expansion device
Type of load -
Resistive load
Type of fastening -
Screw mounting
Interface type -
Other
Built-in position -
Vertical
Degree of protection (IP rating) -
IP20
Integrated diagnosis function -
Number of heating emitters per output -
1
Number of outputs for heating emitter -
12
Output current for heating power -
16 Ampere
Output voltage for heating power -
230 Volt
Overload-/temperature protection -
Power capacity for heating power per output -
3.68 Kilowatt
Rated frequency -
47 Hertz
Rated supply voltage at AC -
40.5 Volt
Rated switching capacity -
64 Ampere
Short-circuit protection, outputs available -
Type of heating emitter control -
Half-wave control
Type of power supply -
External
Voltage type of supply voltage -
AC
With approval according to UL -

Availability Back Order

POA
