6BK19422AA000AA0

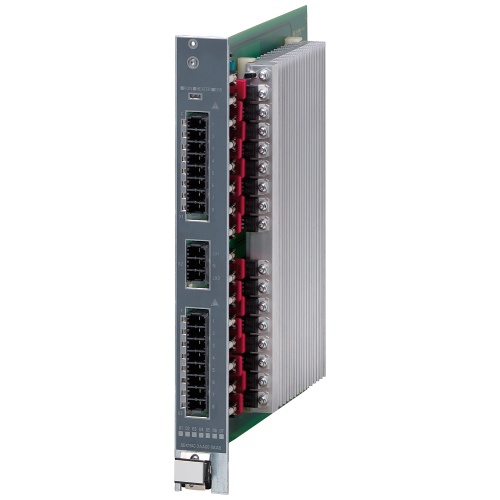

SIPLUS HCS4200 POM4220 Lowend. Power output module (POM) for inserting in a HCS RACK4200. with 16 ou

Manufacturer's No: 6BK1942-2AA00-0AA0     Manufacturer: Siemens
SIPLUS HCS4200 POM4220 Lowend. Power output module (POM) for inserting in a HCS RACK4200. with 16 ou

View 3D

Availability Back Order

POA
  • Power output module (POM) for HCS RACK4200
  • 16 outputs, each max. 1449 W
  • Inrush current limitation to max. 750 W

Mandatory additional product

Accessories

Spare part



Product

Manufacturer Material ID -
6BK1942-2AA00-0AA0
Net Weight -
1.80kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated supply voltage at DC -
- Volt
Number of outputs for fans -
-
Output voltage for fans -
- Volt
Power carrying capacity for fans per output -
- Kilowatt
Degree of protection (IP) -
IP20
Type of interface -
Other
Type of venting -
Other
Model -
Expansion device
Type of load -
Resistive load
Type of fastening -
Screw mounting
Interface type -
Other
Built-in position -
Vertical
Degree of protection (IP rating) -
IP20
Integrated diagnosis function -
Number of heating emitters per output -
1
Number of outputs for heating emitter -
16
Output current for heating power -
6.3 Ampere
Output voltage for heating power -
230 Volt
Overload-/temperature protection -
Power capacity for heating power per output -
1.449 Kilowatt
Rated frequency -
47 Hertz
Rated supply voltage at AC -
207 Volt
Rated switching capacity -
35 Ampere
Short-circuit protection, outputs available -
Type of heating emitter control -
Half-wave control
Type of power supply -
External
Voltage type of supply voltage -
AC
With approval according to UL -
