6BK19432AA000AA2

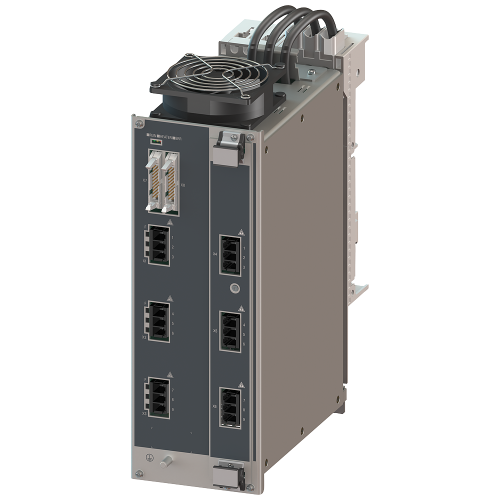

SIPLUS HCS4300 POM4320 BUSBAR MOUNTING (IEC) Busbar mounting (IEC)

Manufacturer's No: 6BK1943-2AA00-0AA2     Manufacturer: Siemens
SIPLUS HCS4300 POM4320 BUSBAR MOUNTING (IEC) Busbar mounting (IEC)

Availability On Request

POA
  • Model: SIPLUS HCS4300 POM4320 BUSBAR MOUNTING (IEC)
  • Power Output: 9 outputs, each max. 7680 W (with half-wave control mode: max. 4000 W due to inrush current limitation)
  • Designed for mounting on power rail system

Accessories

Spare part



Product

Manufacturer Material ID -
6BK1943-2AA00-0AA2
Net Weight -
6.00kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

Rated supply voltage at DC -
- Volt
Type of heating emitter control -
UN
Number of outputs for fans -
-
Output voltage for fans -
- Volt
Power carrying capacity for fans per output -
- Kilowatt
Degree of protection (IP) -
IP20
Type of interface -
Other
Type of venting -
Self-ventilation
Model -
Expansion device
Type of load -
Resistive load
Type of fastening -
Other
Interface type -
Other
Built-in position -
Vertical
Degree of protection (IP rating) -
IP20
Integrated diagnosis function -
Number of heating emitters per output -
1
Number of outputs for heating emitter -
9
Output current for heating power -
16 Ampere
Output voltage for heating power -
400 Volt
Overload-/temperature protection -
Power capacity for heating power per output -
6.4 Kilowatt
Rated frequency -
47 Hertz
Rated supply voltage at AC -
360 Volt
Rated switching capacity -
83 Ampere
Short-circuit protection, outputs available -
Type of power supply -
External
Voltage type of supply voltage -
AC
