6ED10522FB080BA0

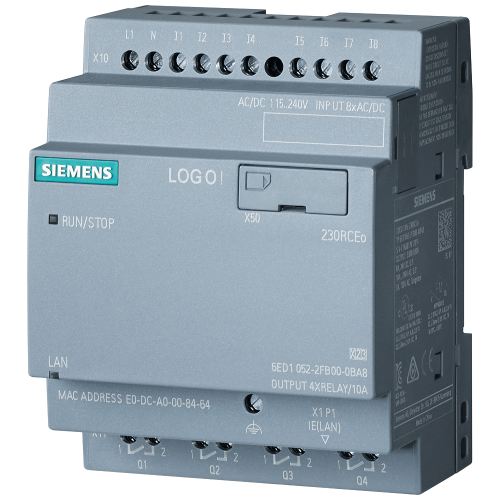

LOGO! 230RCEo - 8 digital Inputs 110/230Vac / 4 digital outputs Relay (10A)

Manufacturer's No: 6ED1052-2FB08-0BA0     Manufacturer: Siemens
LOGO! 230RCEo - 8 digital Inputs 110/230Vac / 4 digital outputs Relay (10A)

Availability Available to order

POA

This product has been superseded by

6ED10522FB080BA1

Please check compatibility before purchasing.

  • Model: LOGO! 230RCEo
  • Inputs: 8 digital inputs
  • Power Supply/Input/Output: 230V AC/230V AC/Relay
  • Outputs: 4 digital outputs (Relay, 10A)
  • Memory: 400 blocks
  • Expandability: Modular
  • Communication: Ethernet
  • Features: Integrated web server, data logging
  • Compatibility: Supports user-defined web pages
  • Storage: Standard microSD card

Read more

  • Software: Compatible with LOGO! Soft Comfort V8 or higher
  • Retro-compatibility: Supports execution of older projects


Product

Manufacturer Material ID -
6ED1052-2FB08-0BA0
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Width -
71.5 Millimetre
Height -
90 Millimetre
Depth -
60 Millimetre
Expandable -
Switching current -
10 Ampere
With timer -
Number of digital inputs -
8
Number of digital outputs -
4
Number of analogue inputs -
0
Number of analogue outputs -
0
Voltage type of supply voltage -
AC/DC
Supporting protocol for LON -
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for TCP/IP -
With relay output -
Rail mounting possible -
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Number of HW-interfaces Wireless -
0
Front build in possible -
Wall mounting/direct mounting -
Basic device -
Supply voltage AC 50 Hz -
85 Volt
Supply voltage AC 60 Hz -
85 Volt
Supply voltage DC -
100 Volt
Commodity Code -
85371091
last_sent_to_siemens_at -
2026-08-07 06:45:55

Availability Available to order

POA
Sign in or Register for customer prices.

This product has been superseded by

6ED10522FB080BA1

Please check compatibility before purchasing.
